Fuel System Components With ORVR System
Fuel System Components With ORVR System

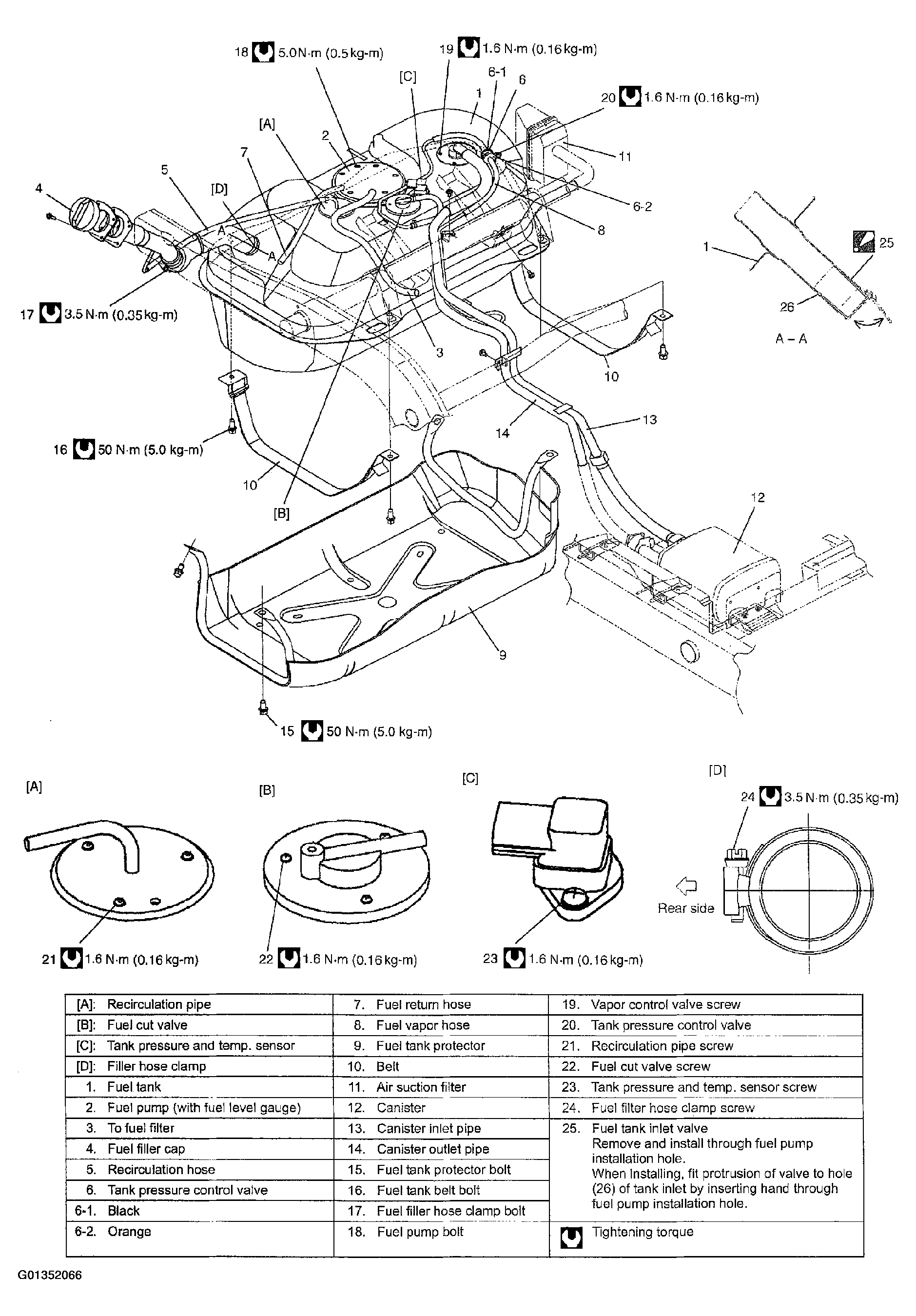

Fig 1: Identifying Fuel System Components With ORVR System
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
