Ignition System Check: Notes

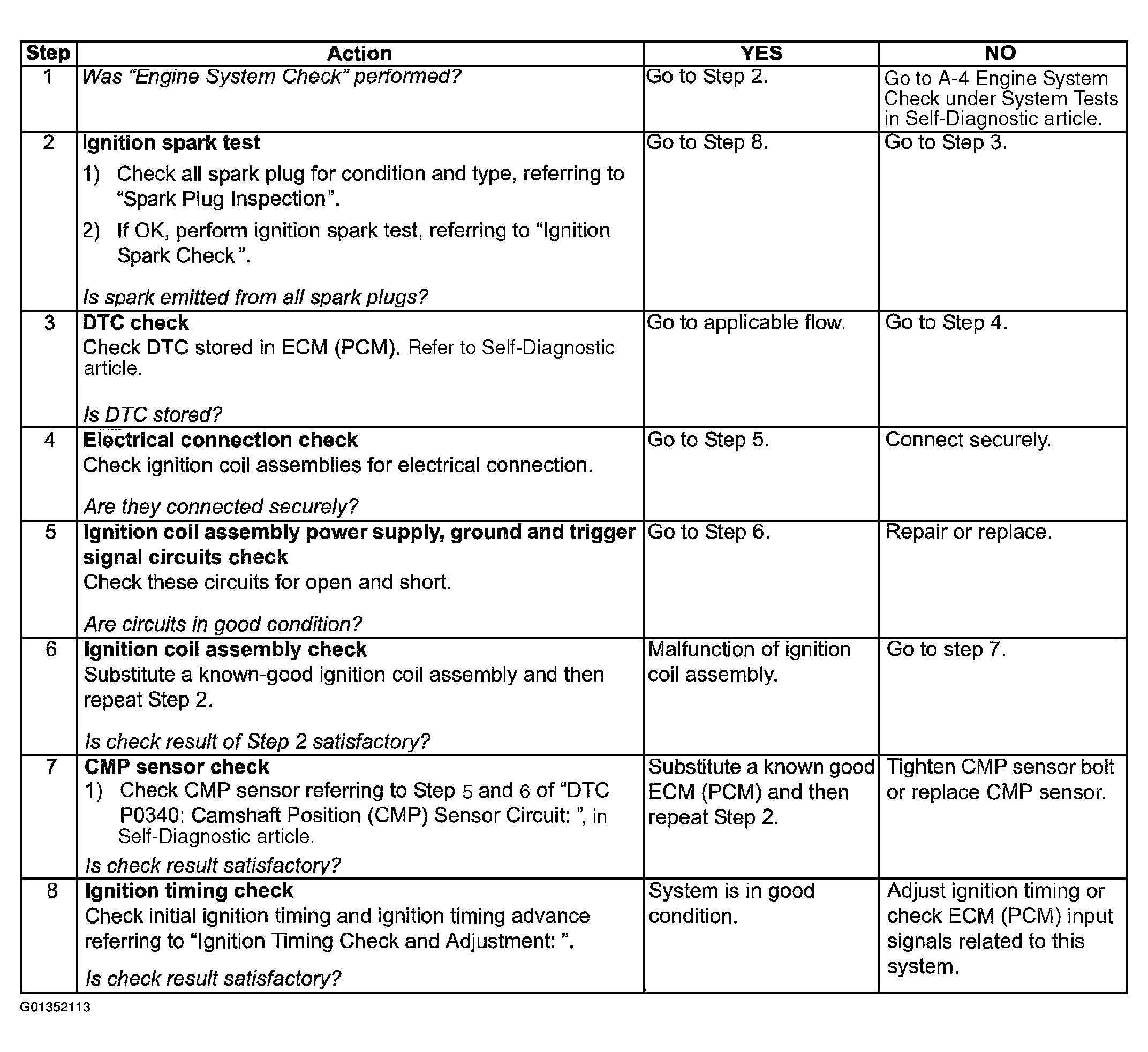

Fig 1: Ignition System Check Chart

Courtesy of SUZUKI OF AMERICA CORP.

NOTE: For any action in "Ignition System Check Chart" references to "Engine System Check", go to A-4 ENGINE SYSTEM CHECK , System Tests.
