Ignition System Wiring Circuit

NOTE: For ECM (PCM) terminal assignment, refer to TEST PROCEDURES , Pin Voltage Chart.

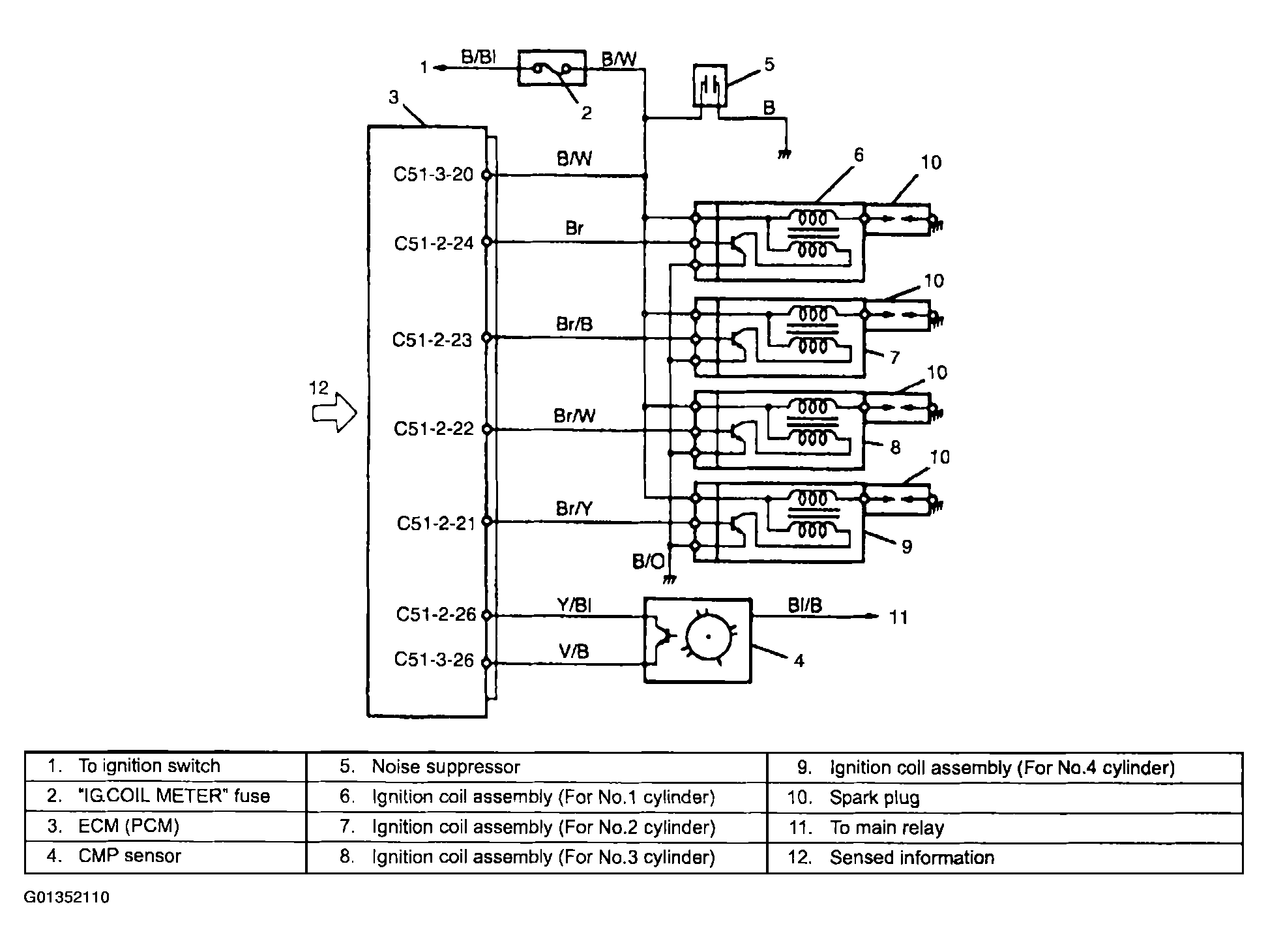

Fig 1: Ignition System Wiring Diagram
G01352110Courtesy of SUZUKI OF AMERICA CORP.
