Component Location

For engine control system component location, see Fig 1 .

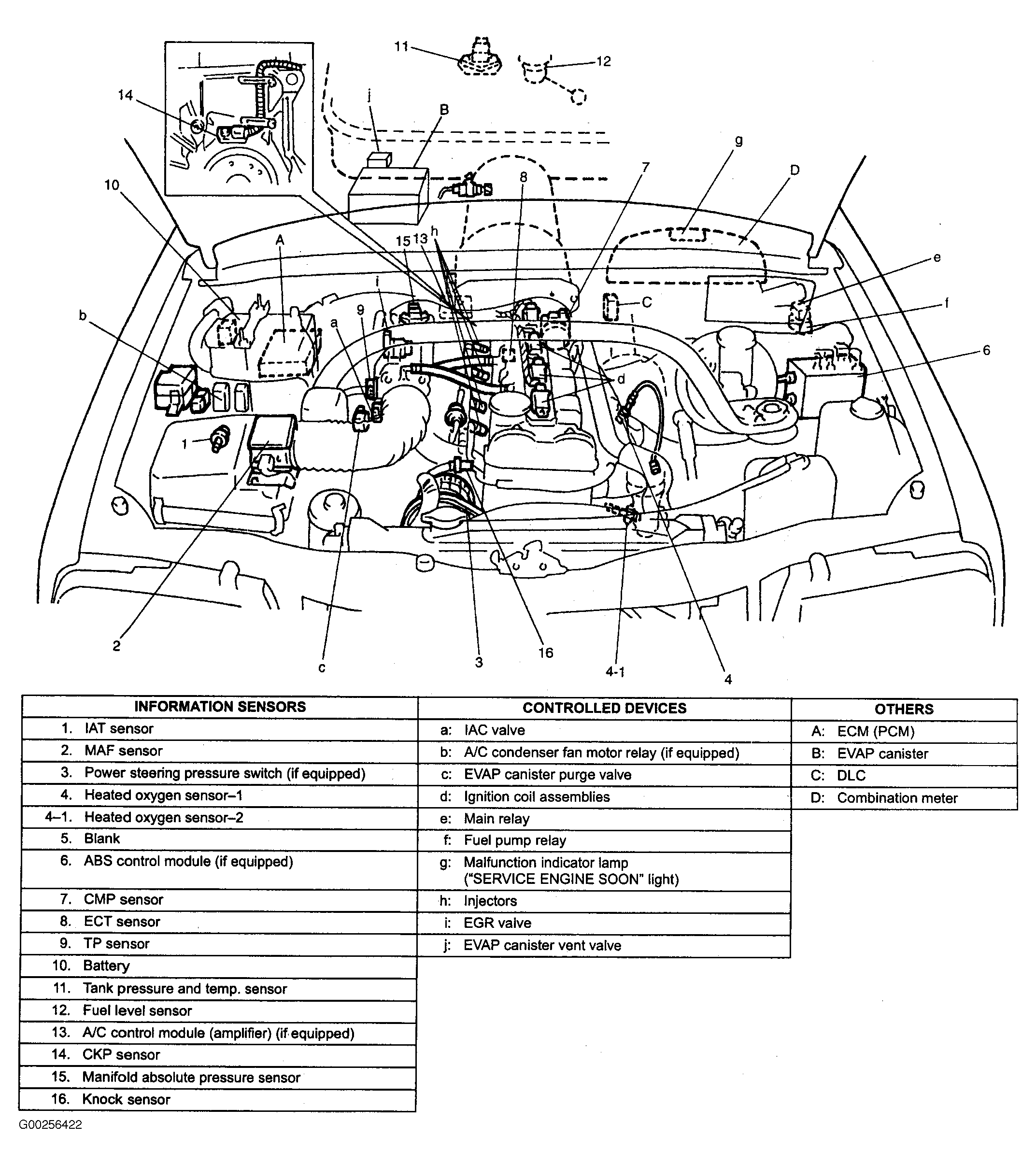

Fig 1: Locating Engine Control System Components
G00256422Courtesy of SUZUKI OF AMERICA CORP.
