General Description
›
Components And Functions Of Cruise Control System
Components And Functions Of Cruise Control System

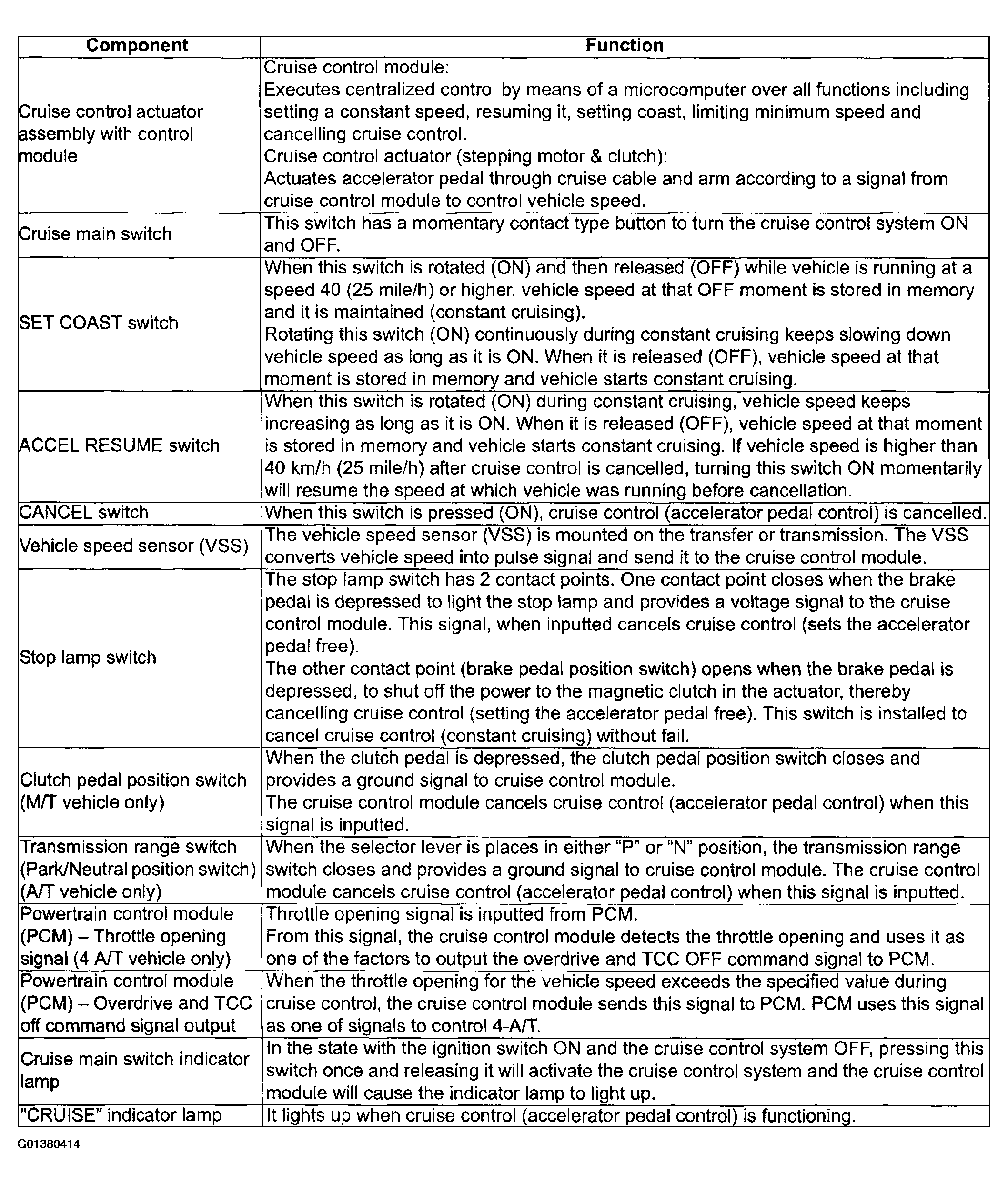

Fig 1: Identifying Cruise Control System Component Functions
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
