Specifications
›
Tightening Torque Specifications
Tightening Torque Specifications

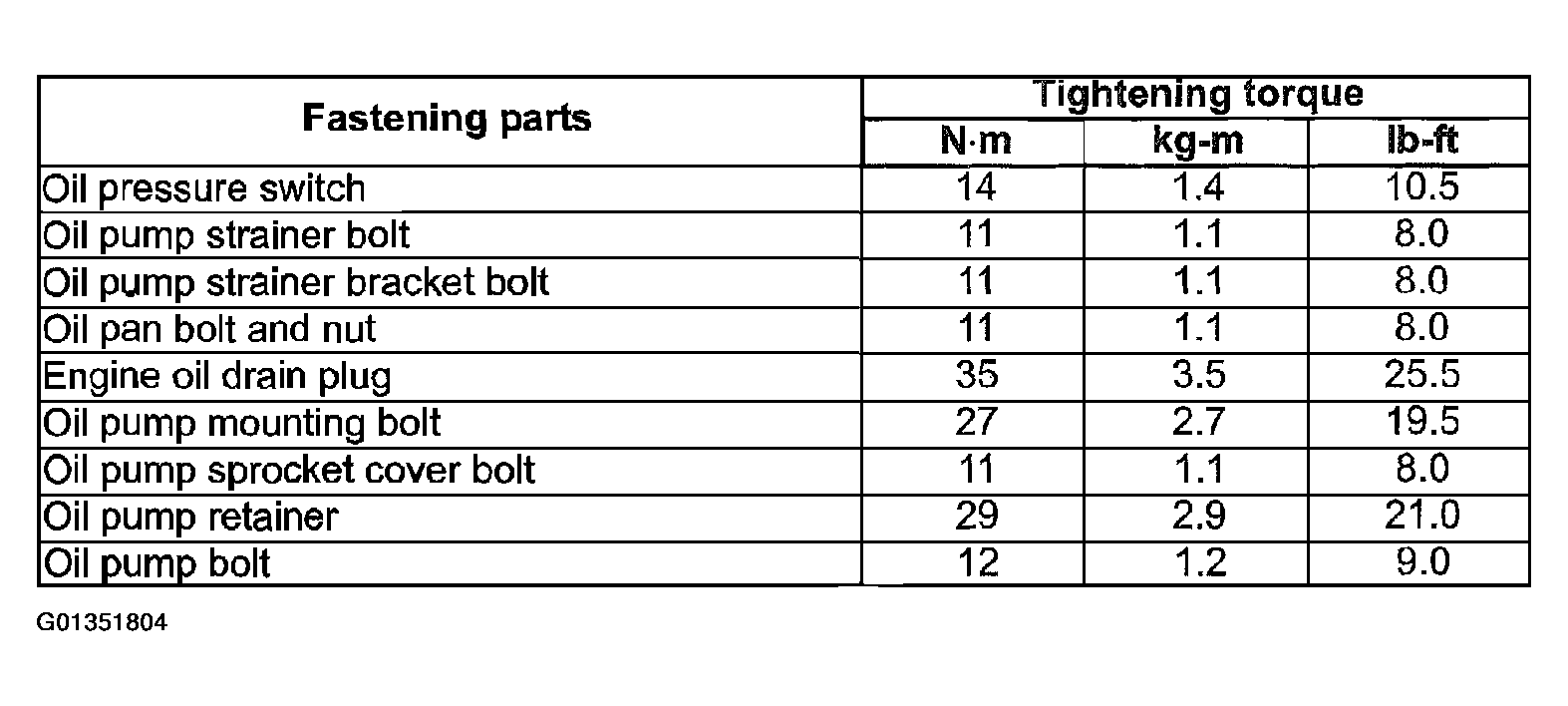

Fig 1: Tightening Torque Specifications Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
