Fuel Injector

There are 4 injectors (one for each cylinder), each of which is installed between the intake manifold (or cylinder head) and delivery pipe.

It is an electromagnetic type injection nozzle which injects fuel into the intake port of the cylinder head according to the signal from ECM (PCM).

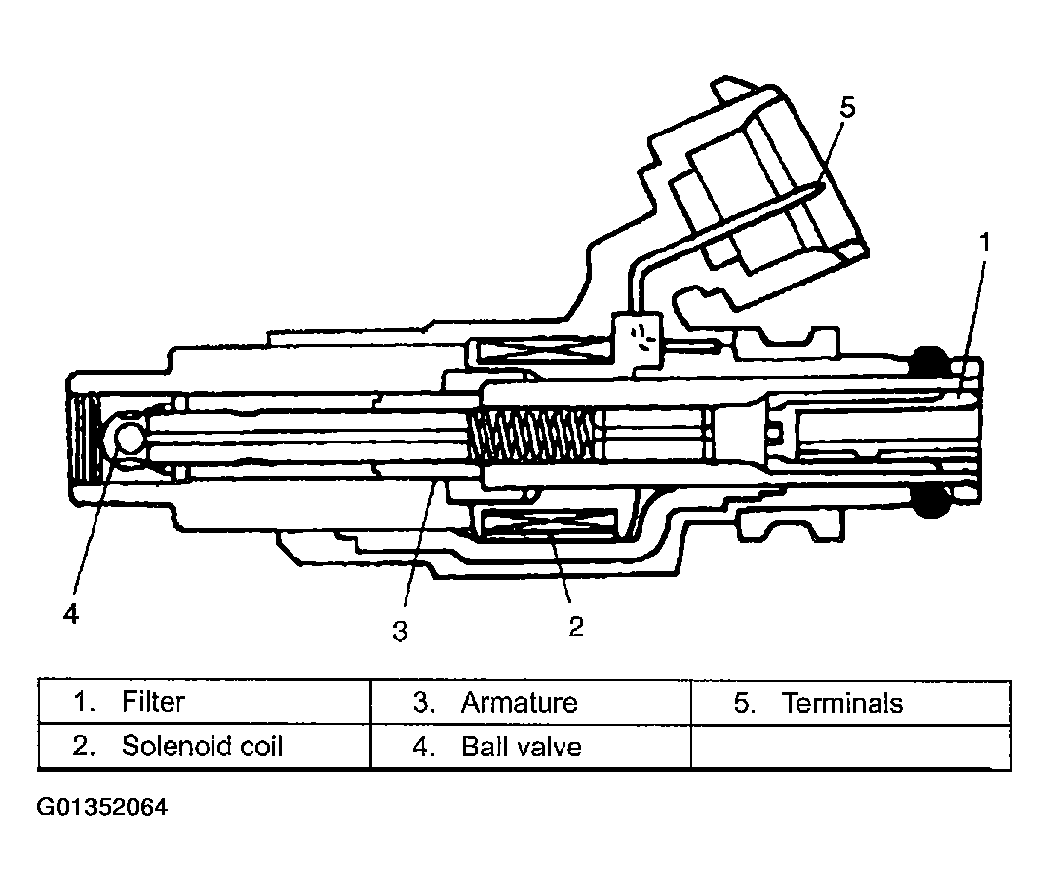

Fig 1: Identifying Fuel Injector
G01352064Courtesy of SUZUKI OF AMERICA CORP.
