Fuel Pump Removal And Installation: Installation

Reverse removal procedure for installation noting the following.

• Use new gasket (2).
• Tighten fuel pump bolts to specified torque.

Tightening torque

1. Fuel pump bolt (a):  5 N.m (0.5 kg-m, 4.1 lb-ft)

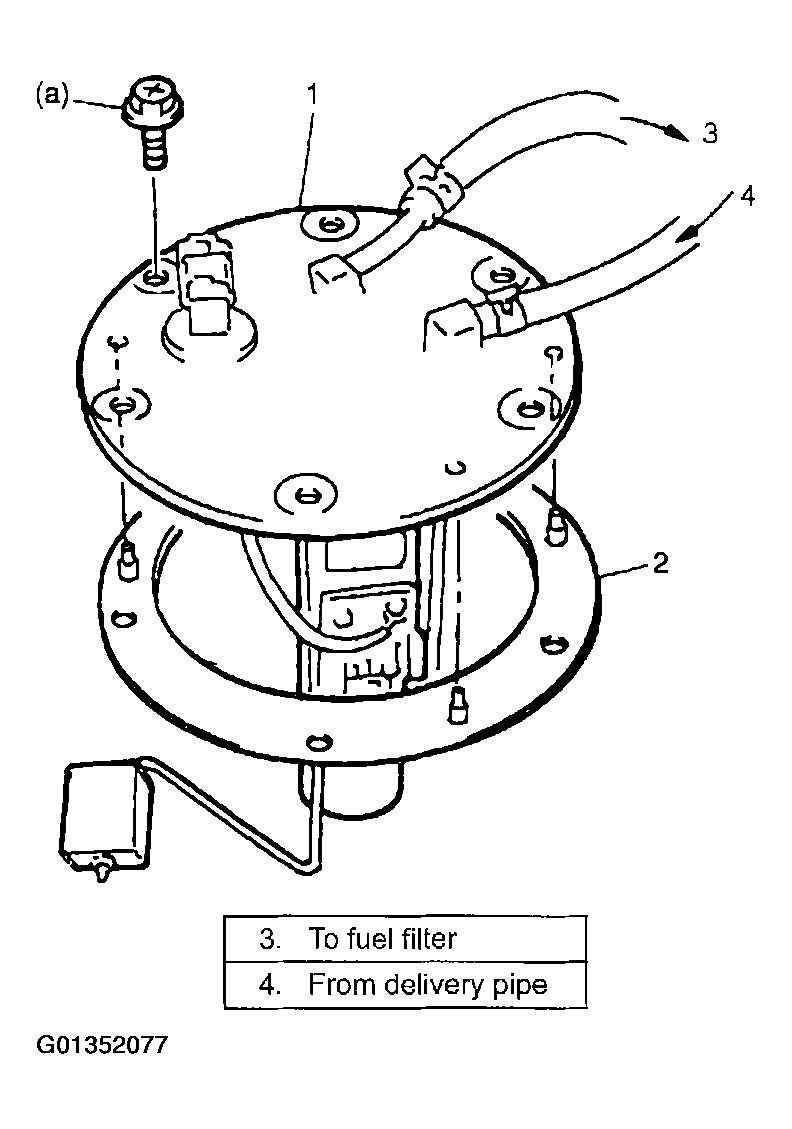

Fig 1: Installing Fuel Pump

Courtesy of SUZUKI OF AMERICA CORP.
