Computerized Engine Controls: Notes

Refer to Fig 1 -Fig 2 to locate component parts.

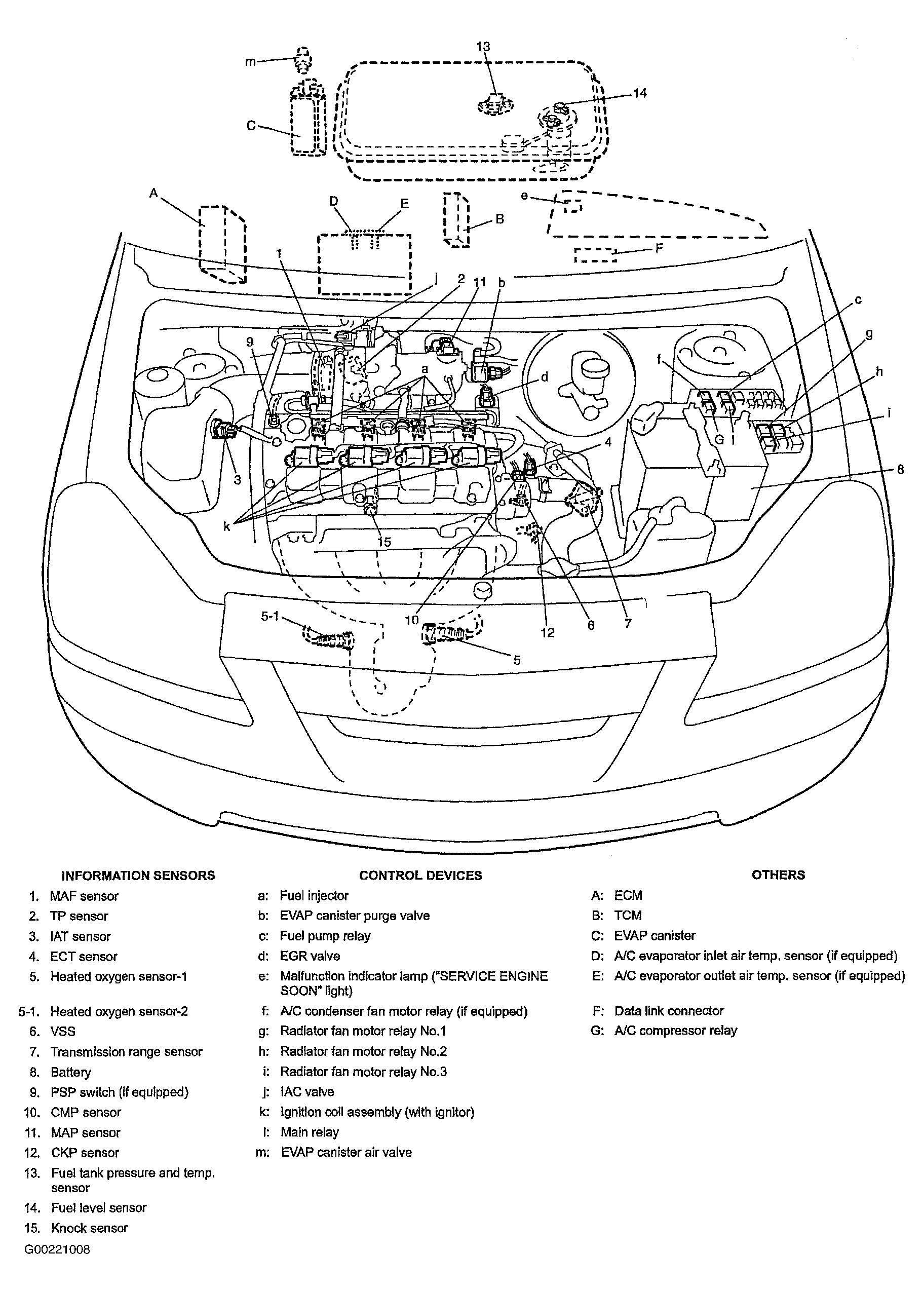

Fig 1: Identifying Electronic Control System Components (Aerio)

Courtesy of SUZUKI OF AMERICA CORP.

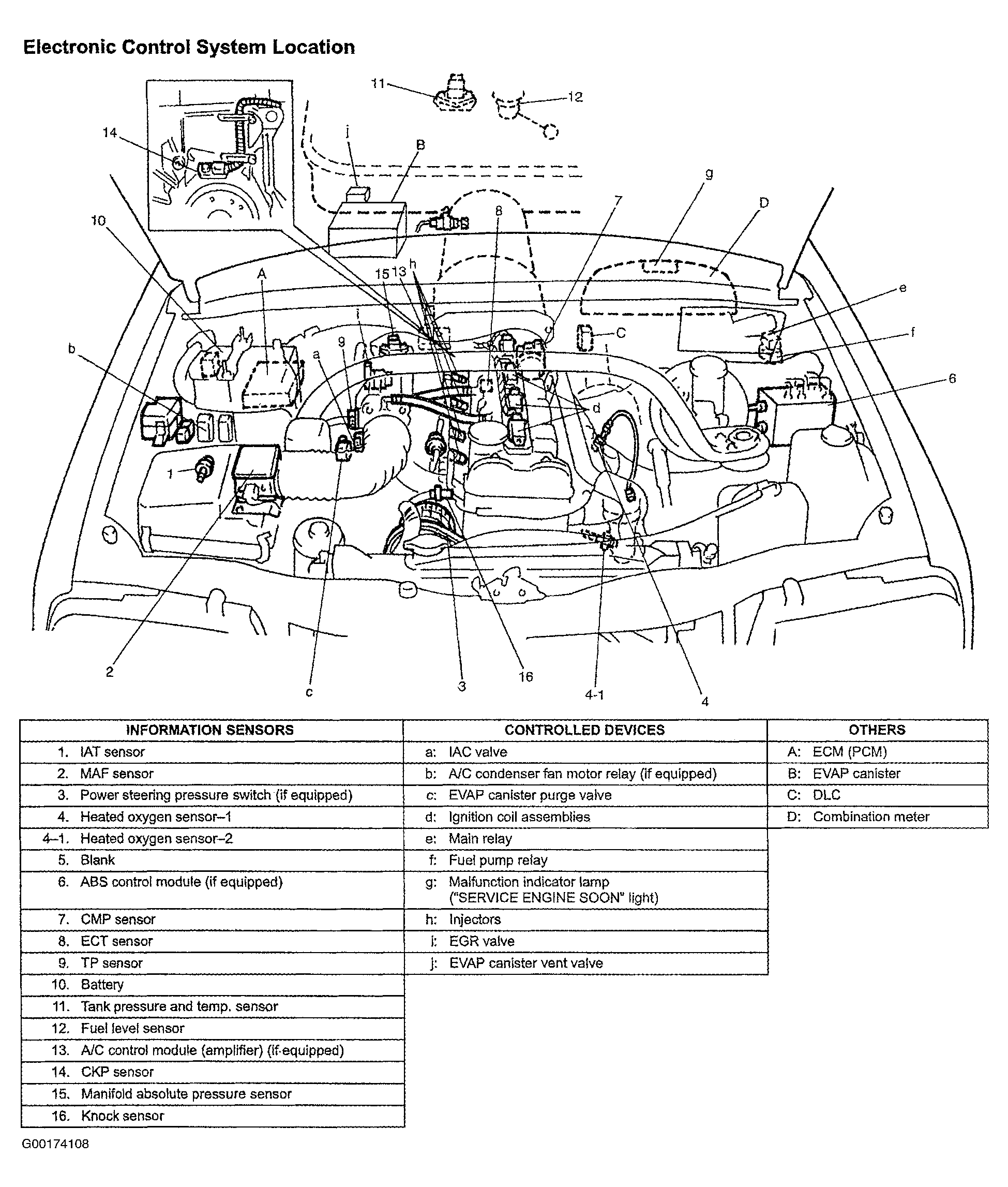

Fig 2: Identifying Electronic Control System Components (Vitara)

Courtesy of SUZUKI OF AMERICA CORP.
