Scan Tool Data: Notes

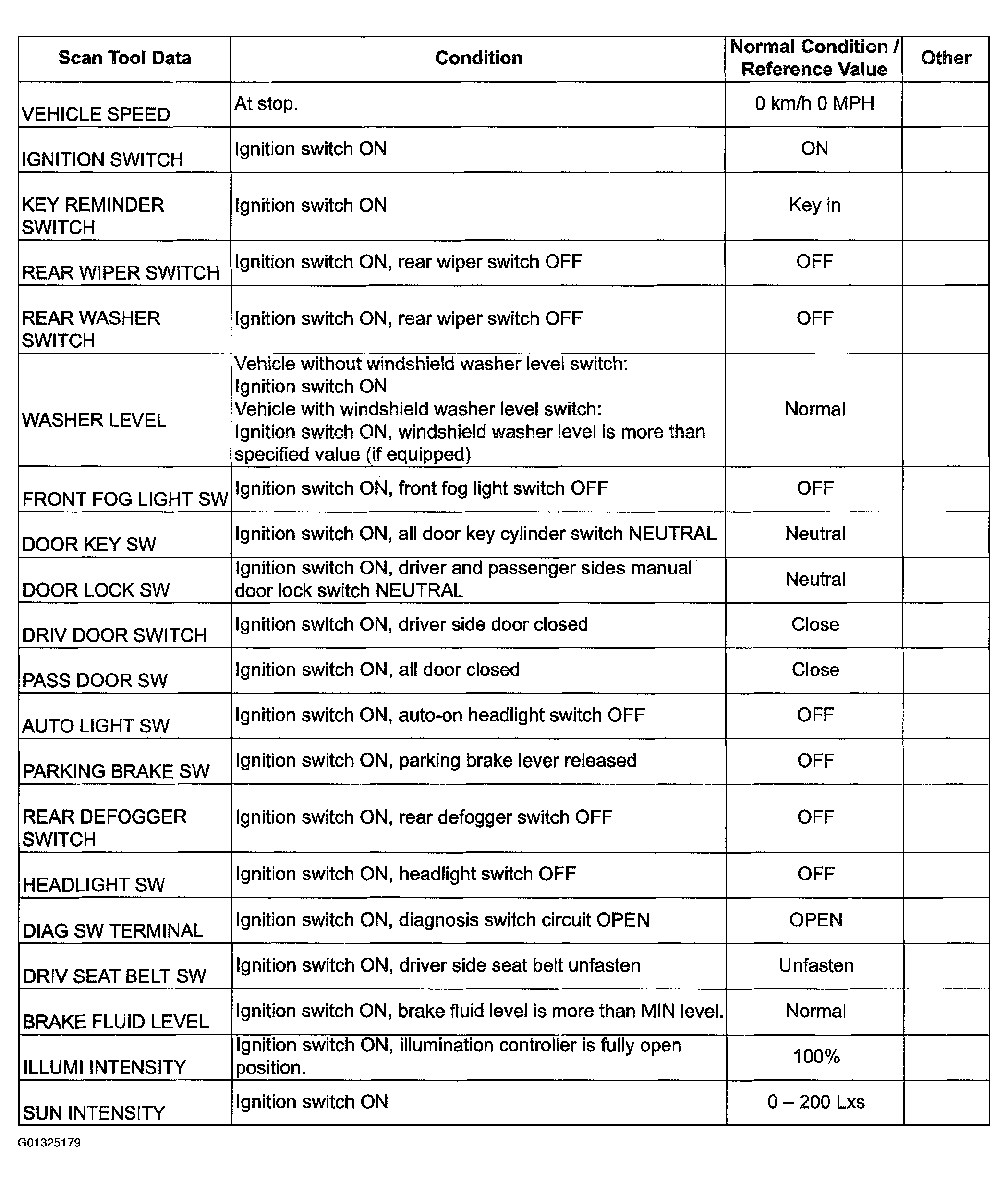

Fig 1: Identifying Body Electrical Control System Scan Tool Data
Courtesy of SUZUKI OF AMERICA CORP.
