Keyless Entry Receiver Circuit Check

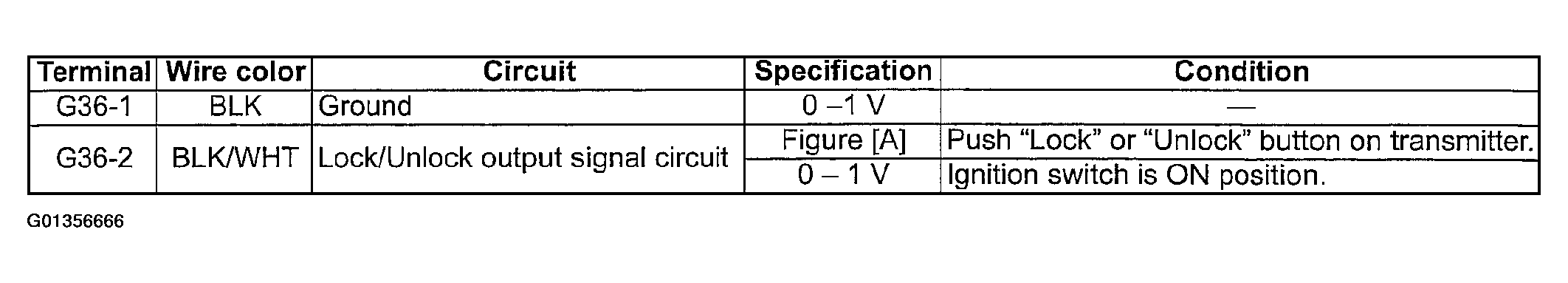

Fig 1: Keyless Entry Receiver Circuit Check Chart (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

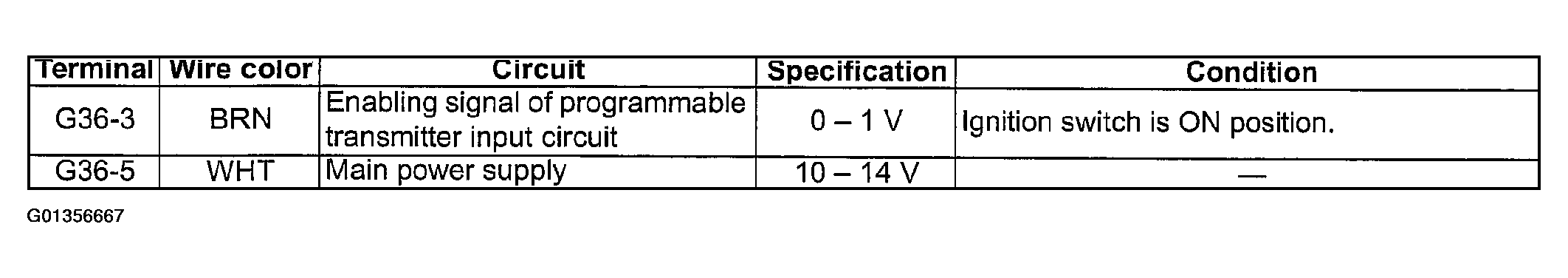

Fig 2: Keyless Entry Receiver Circuit Check Chart (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
