Power Window Main Switch Inspection
Power Window Main Switch Inspection
Inspect switch continuity between terminals.

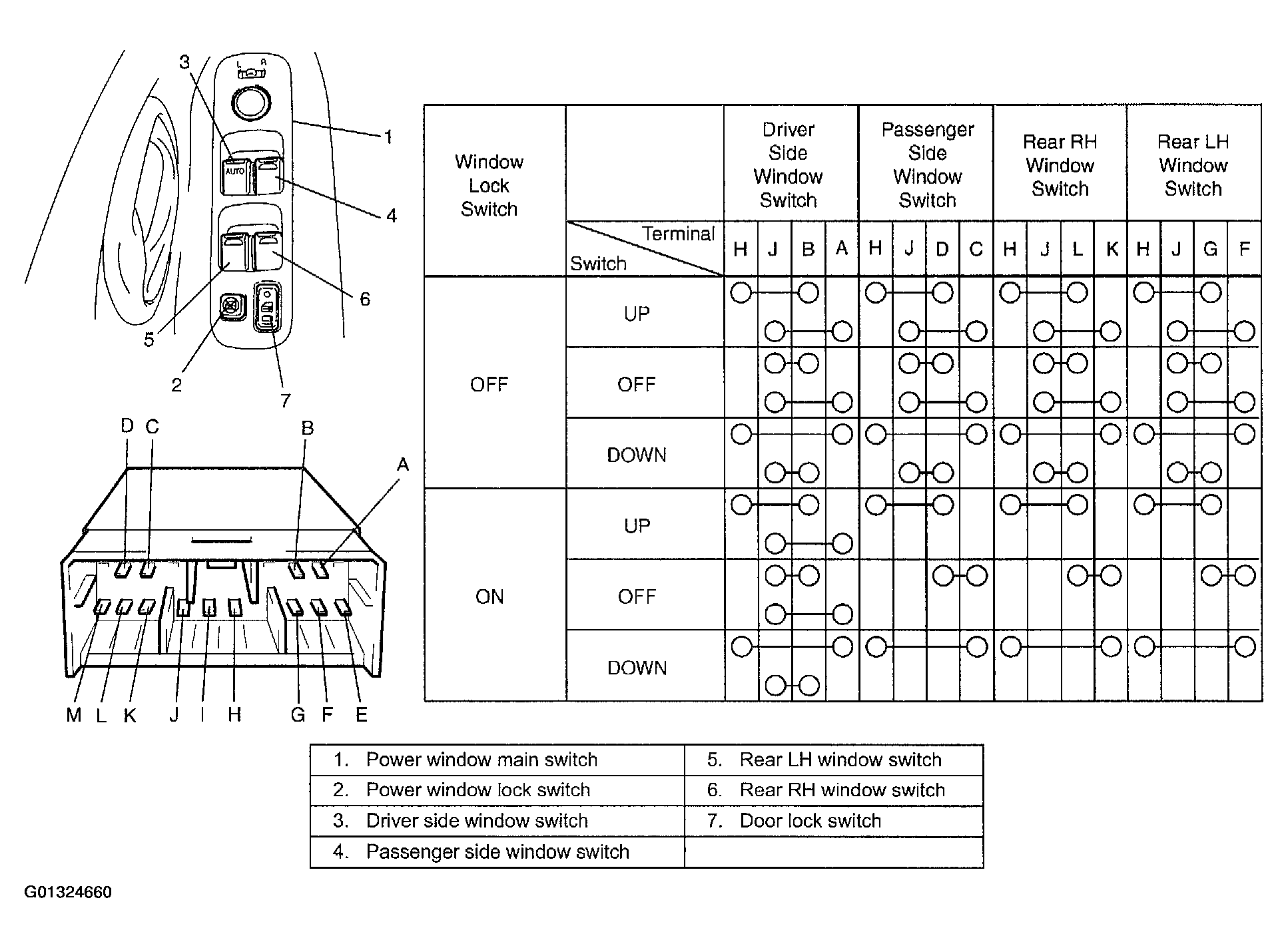

Fig 1: Checking Power Window Main Switch
