Engine Mechanical
›
Engine Lubrication System
›
Repair Instructions
›
Oil Pump Components
Oil Pump Components

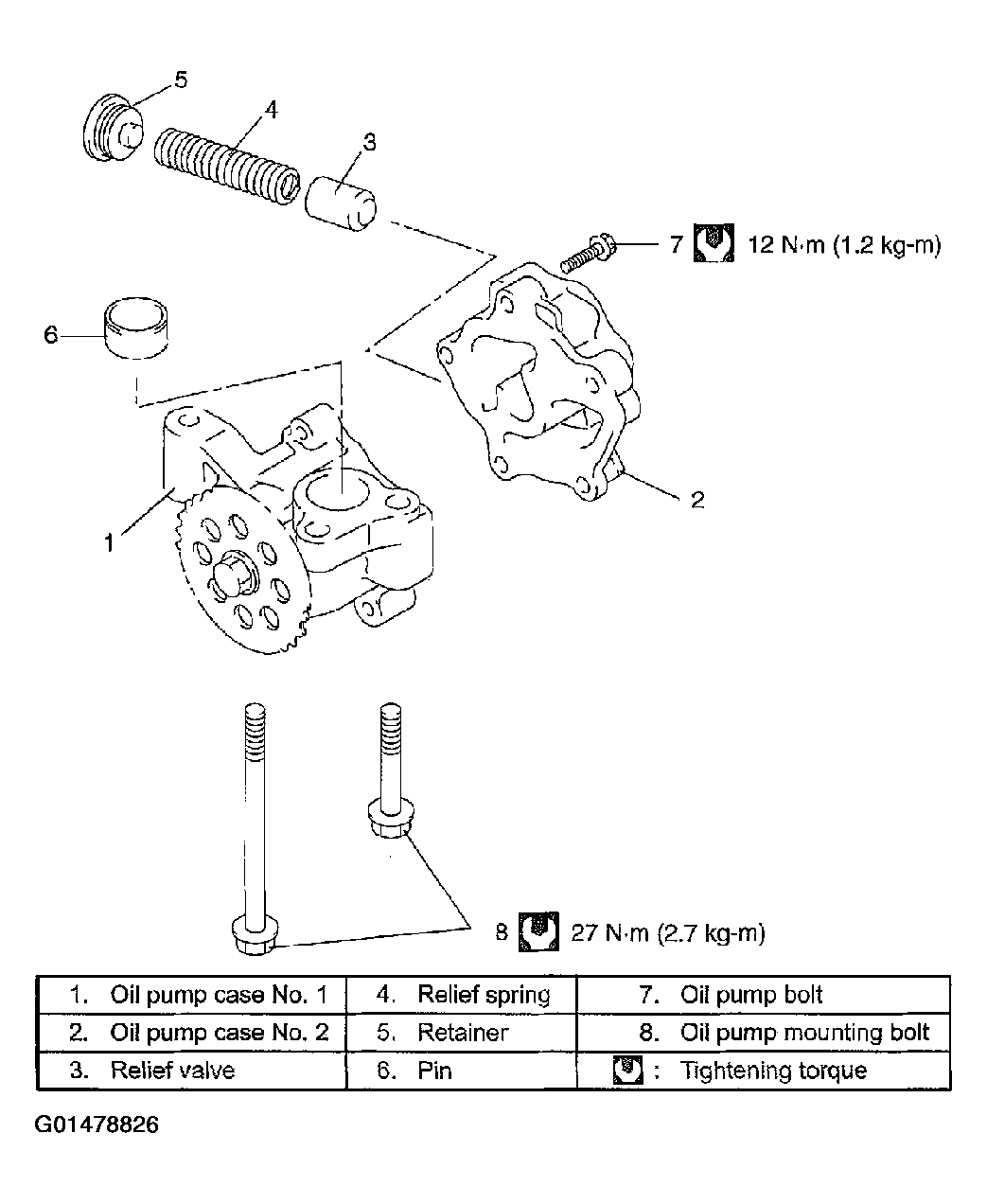

Fig 1: Exploded View Of Oil Pump Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
