Oxygen Sensor Monitor: Operation

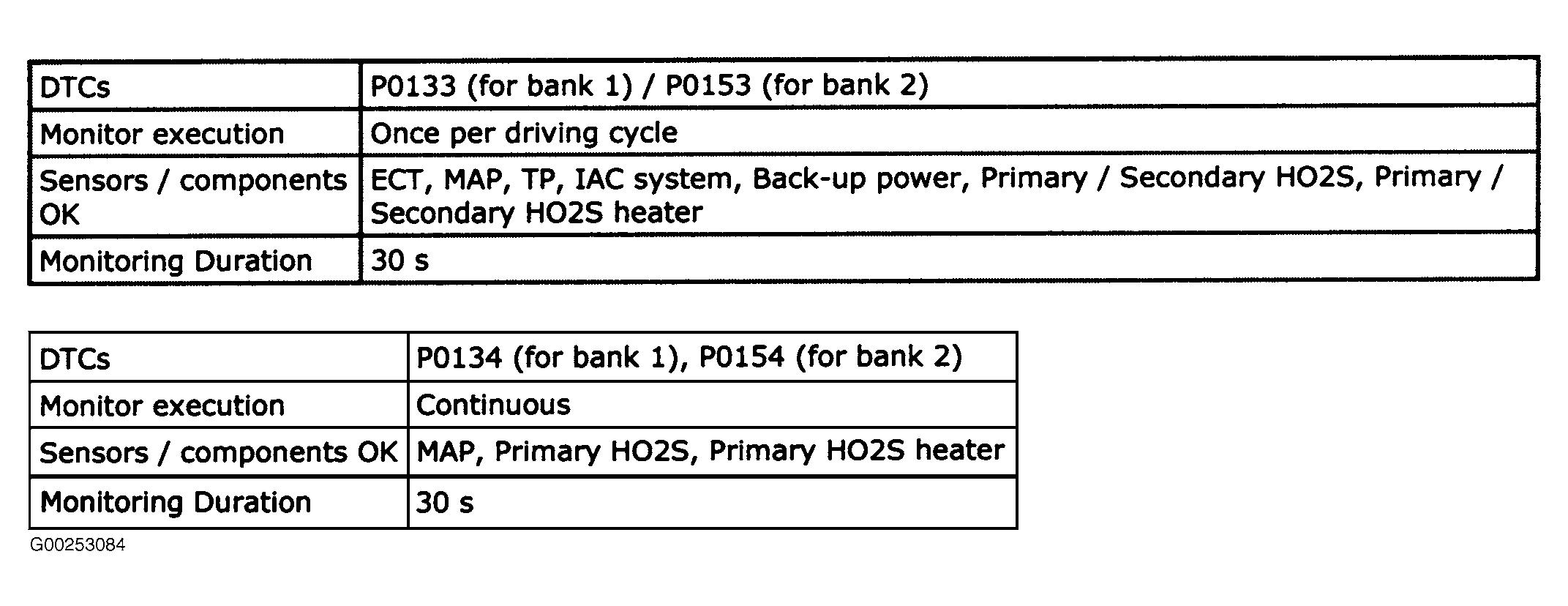

Fig 1: Primary HO2S Monitor Operation

Courtesy of SUZUKI OF AMERICA CORP.

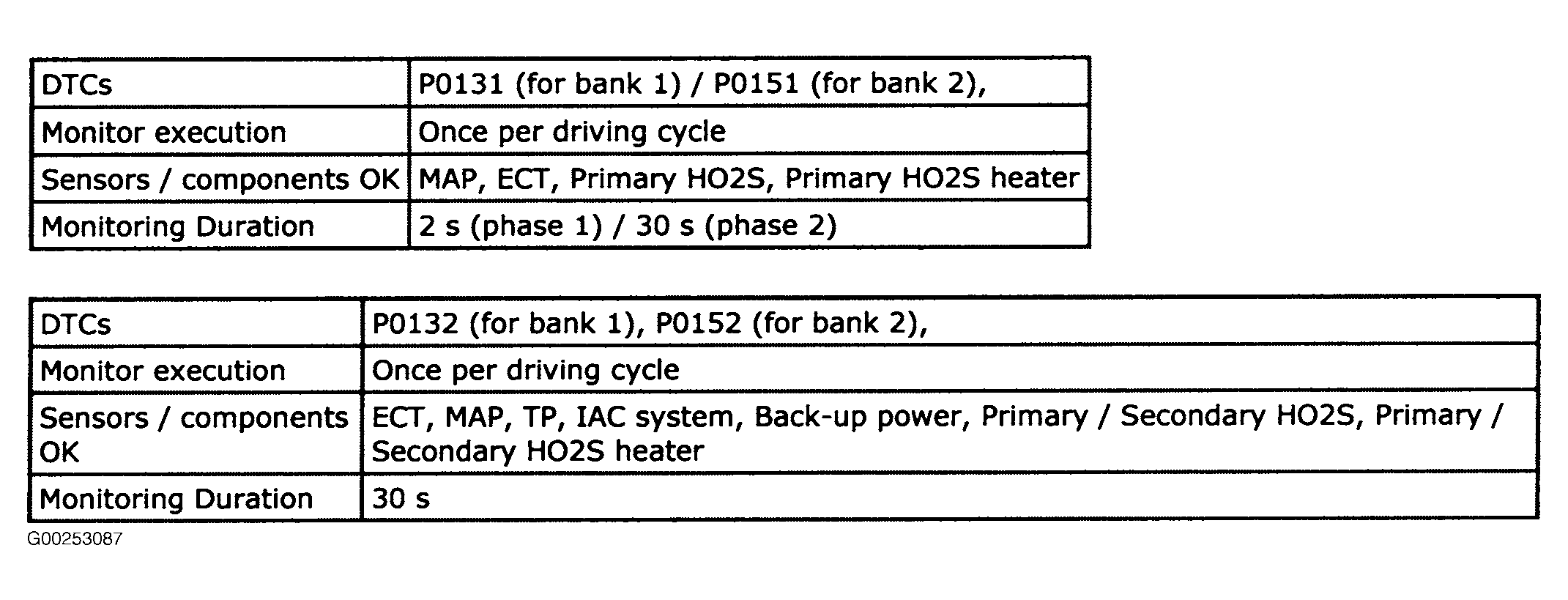

Fig 2: Primary HO2S Circuit Monitor Operation

Courtesy of SUZUKI OF AMERICA CORP.

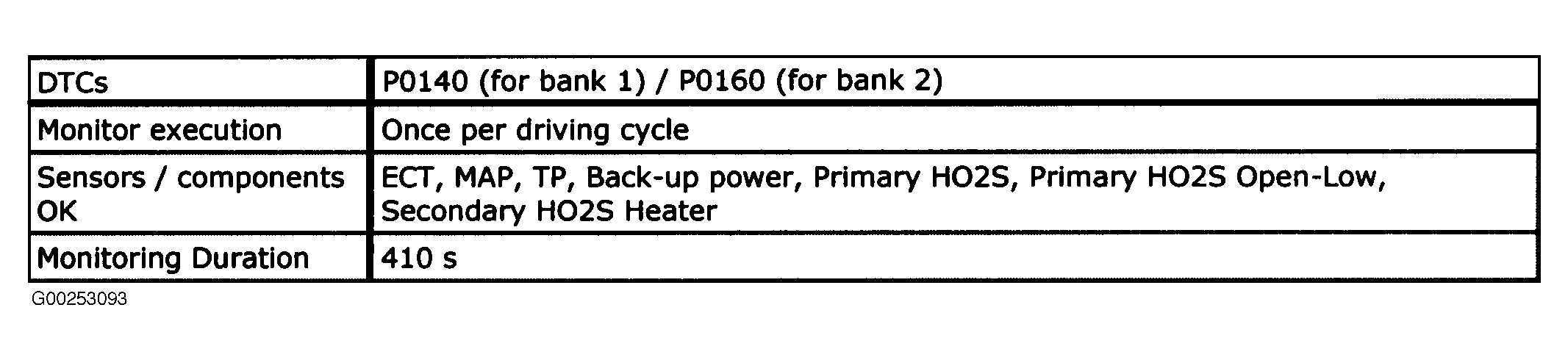

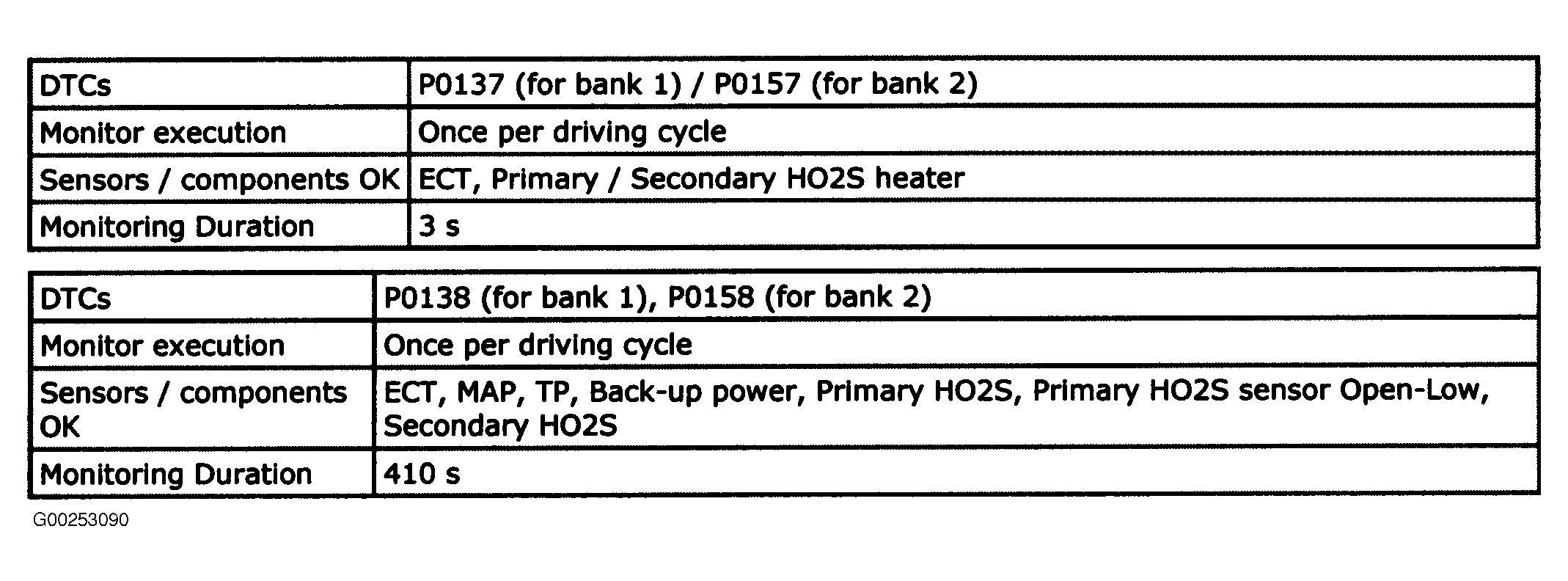

Fig 3: Secondary HO2S Monitor Operation

Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: Secondary HO2S Circuit Monitor Operation

Courtesy of SUZUKI OF AMERICA CORP.
