Suzuki
›
2003
›
XL-7 Base, RWD
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Electrical Devices
›
H27 Engine
›
Specifications
›
Tightening Torque Specifications
Tightening Torque Specifications

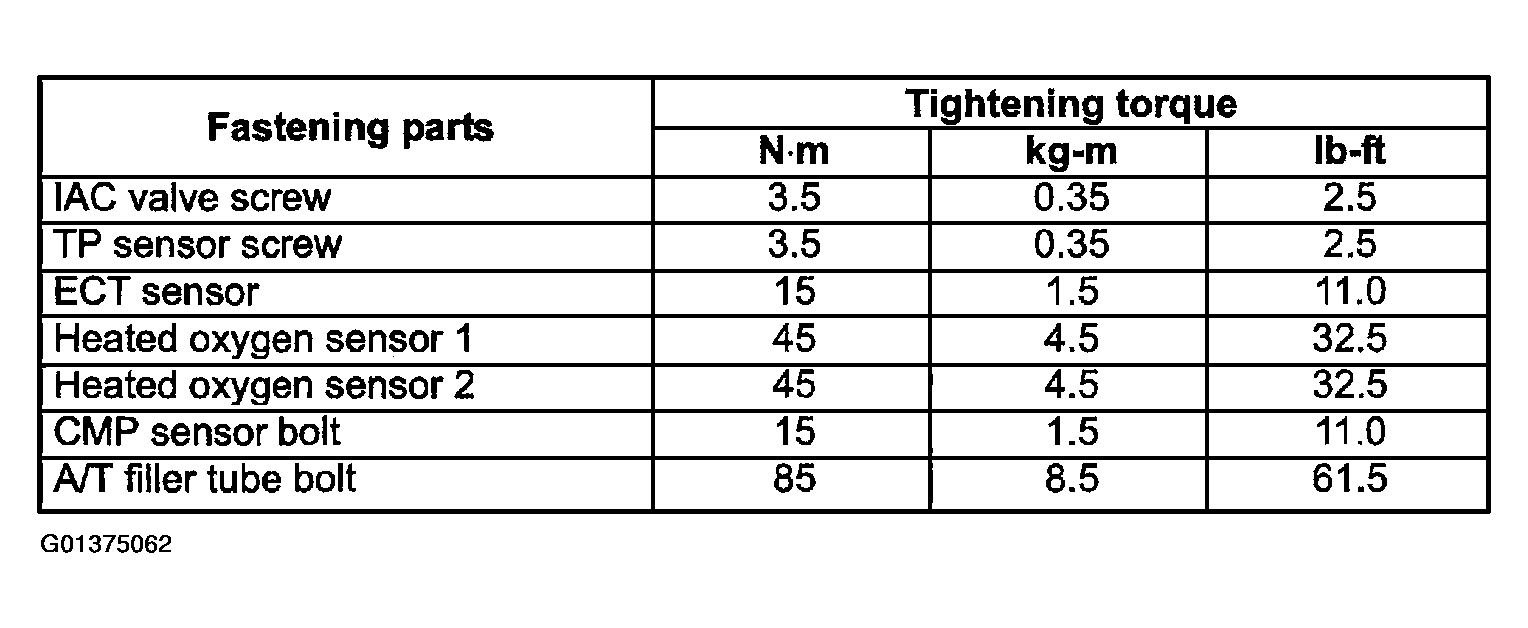

Fig 1: Tightening Torque Specifications Table
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
