Ignition System Check
Ignition System Check

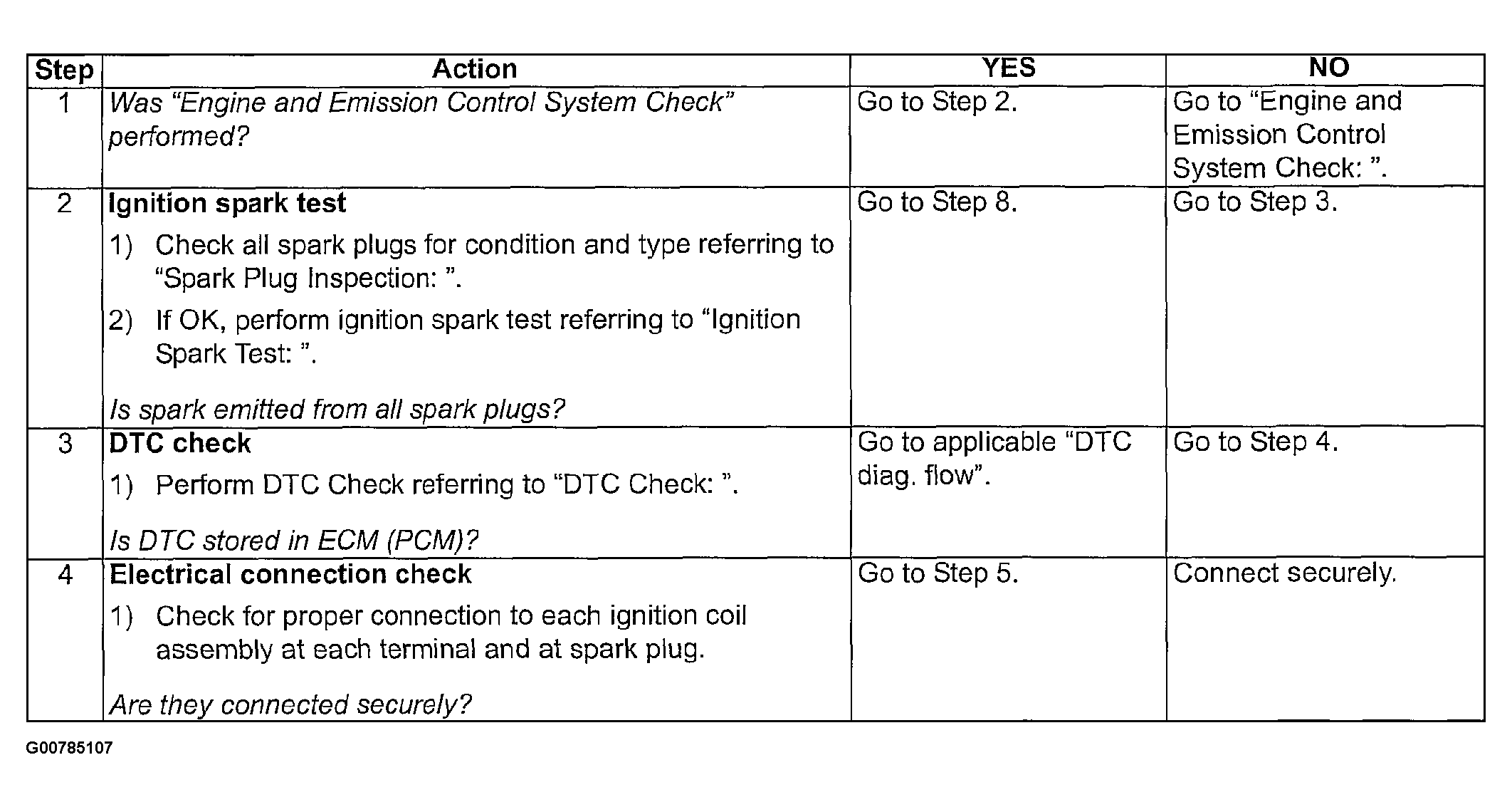

Fig 1: Ignition System Check Chart (1 of 2)
Courtesy of SUZUKI OF AMERICA CORP.

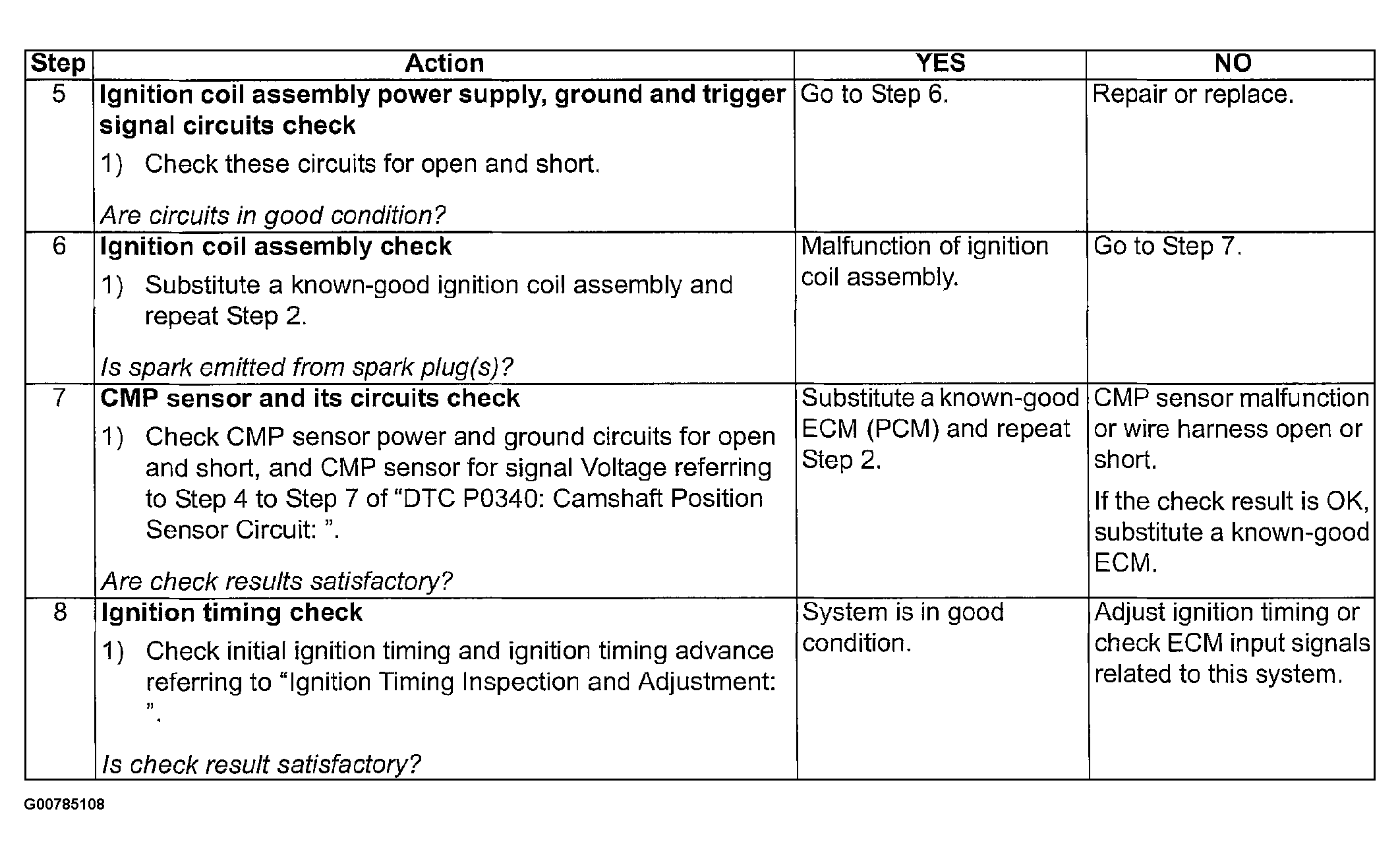

Fig 2: Ignition System Check Chart (2 of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
