General Description
›
Engine and Emission Control Input/Output Table
Engine and Emission Control Input/Output Table

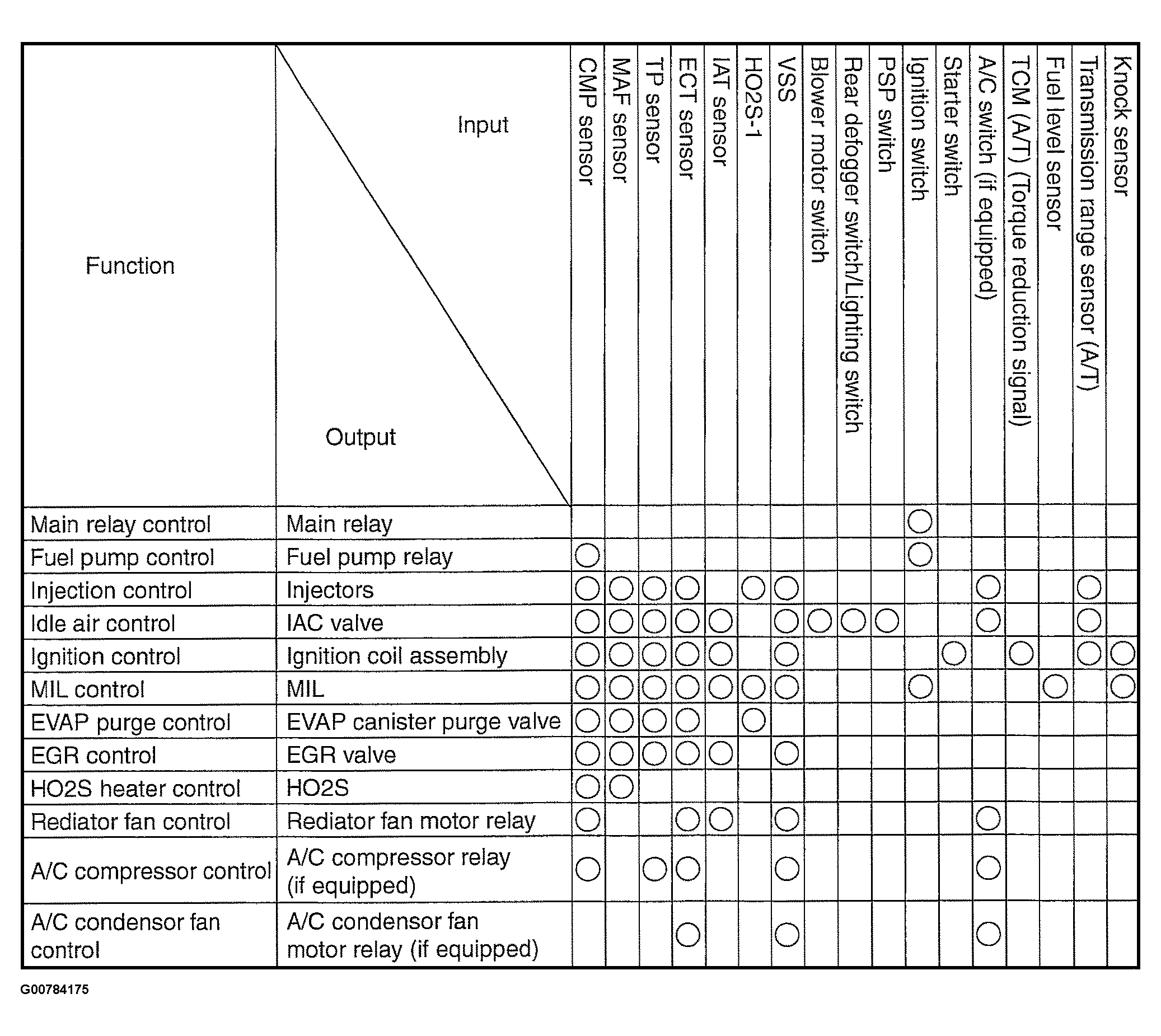

Fig 1: Engine & Emission Control Input/Output Table
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
