General Description
›
Engine and Emission Control System Flow Diagram
Engine and Emission Control System Flow Diagram

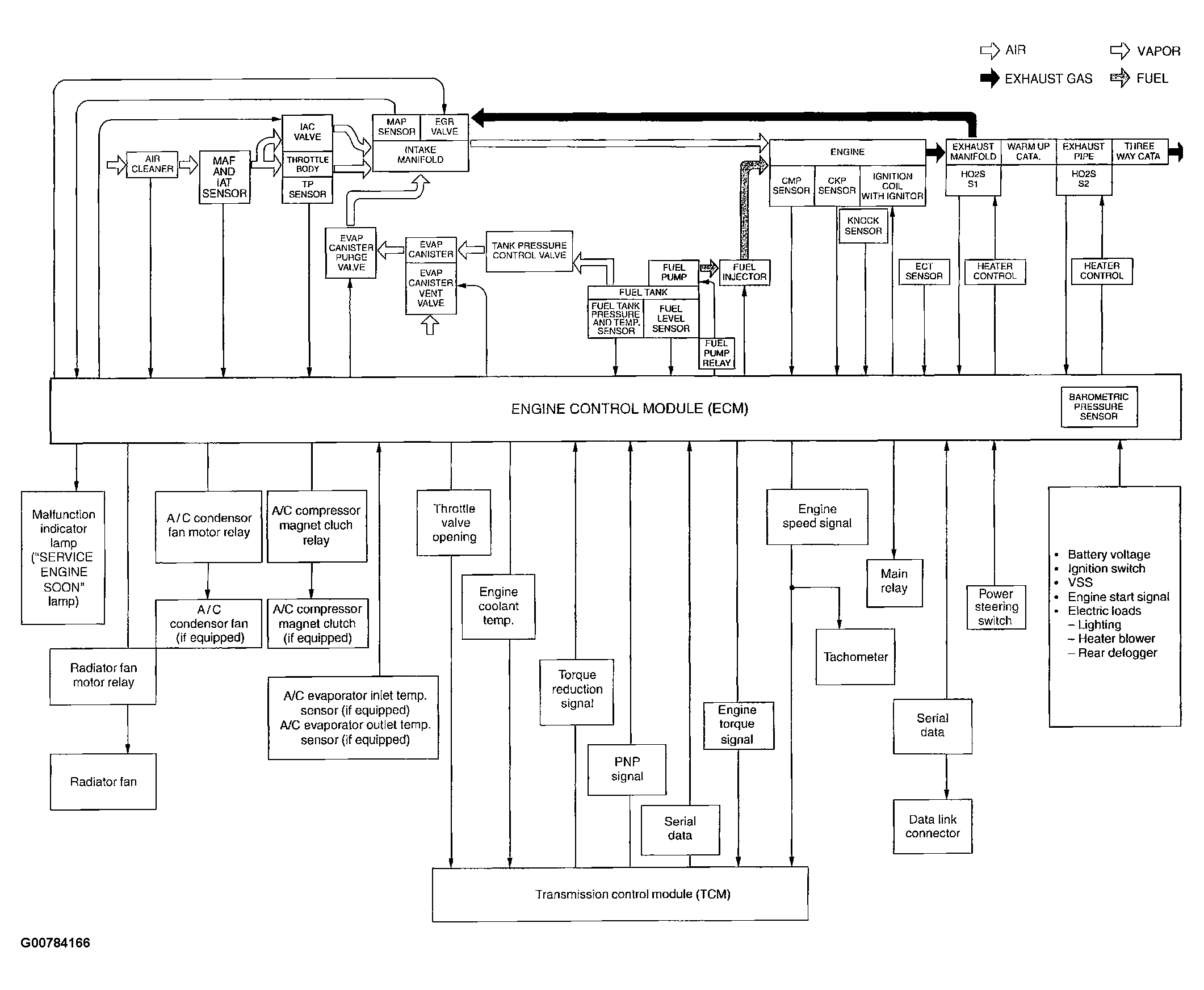

Fig 1: Engine & Emission Control System Flow Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
