Removal & Installation: Battery: Remounting

1. Reverse removal procedure.
2. Torque battery cables to specification. See TORQUE SPECIFICATIONS .

NOTE: Check to be sure that ground cable has enough clearance to hood panel by terminal.

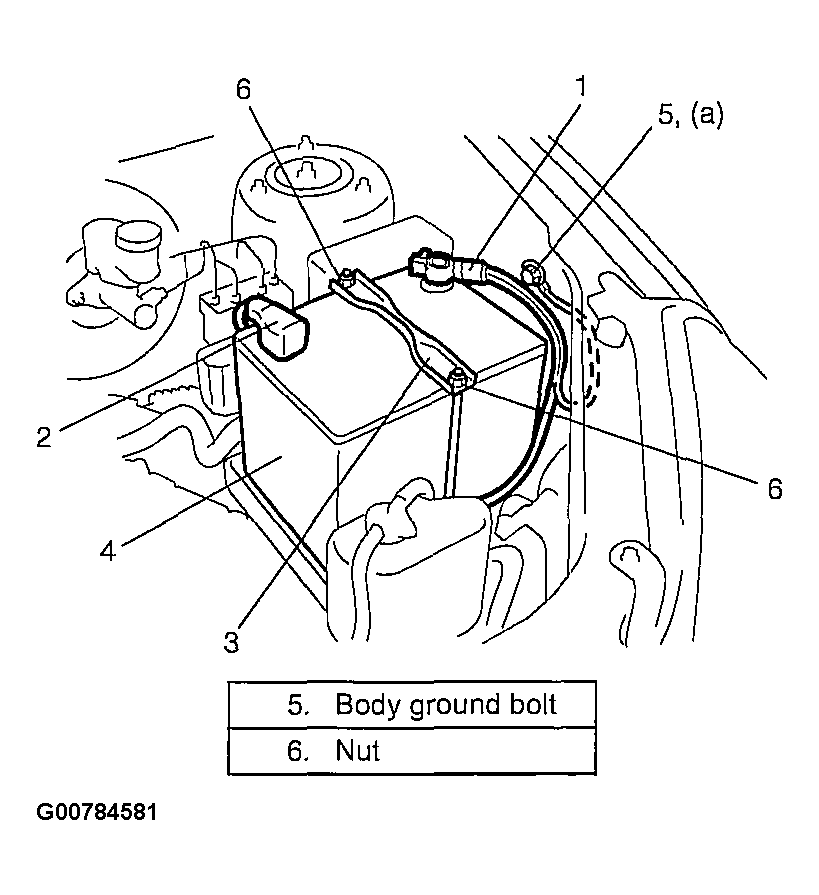

Fig 1: Dismounting/Remounting Battery

Courtesy of SUZUKI OF AMERICA CORP.
