Radiator Fan Control System Check: Troubleshooting

WARNING: Keep hands, tools and clothing away from engine cooling fan to help prevent personal injury. This fan is electric and can come on whether or not the engine is running. The fan can start automatically in response to the ECT sensor with the ignition switch in the "ON" position.

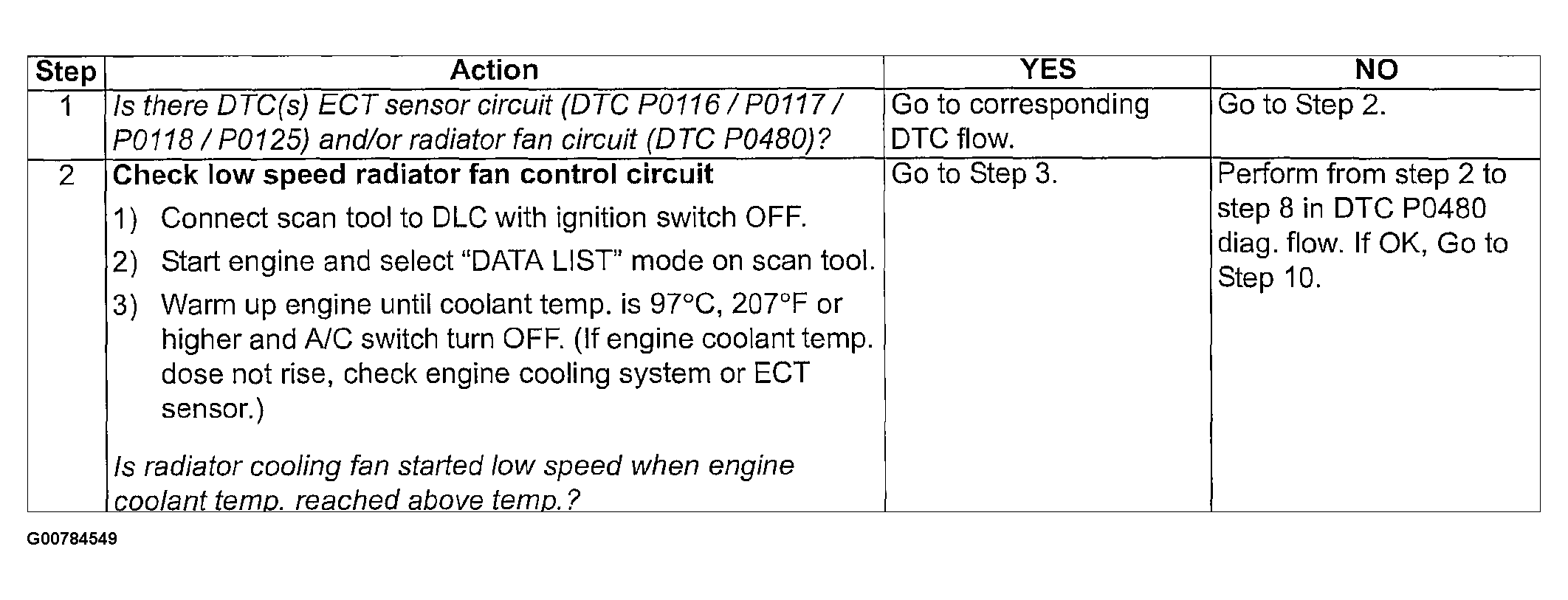

Fig 1: Radiator Fan Control System Troubleshooting Chart (1 of 3)
G00784549Courtesy of SUZUKI OF AMERICA CORP.

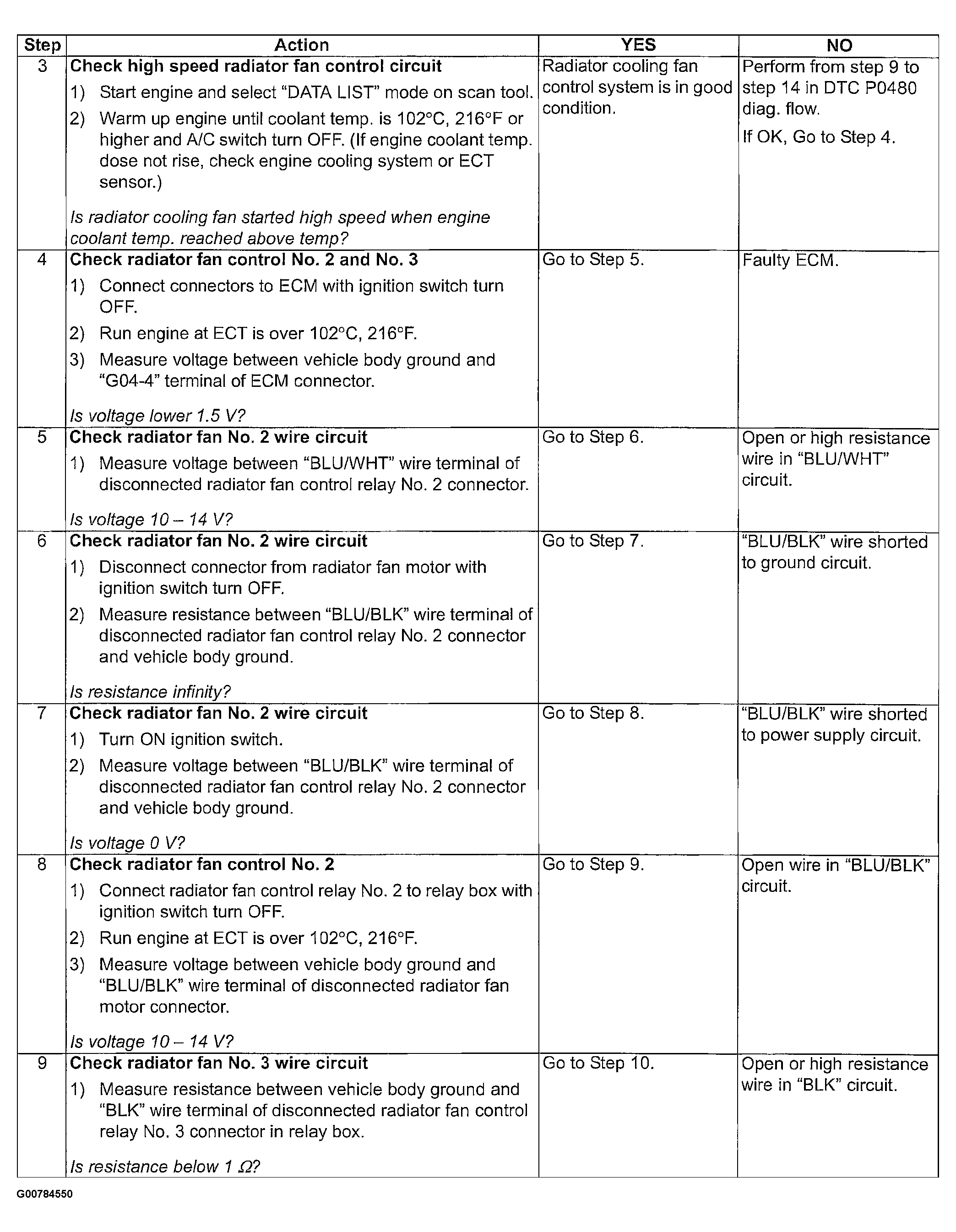

Fig 2: Radiator Fan Control System Troubleshooting Chart (2 of 3)
G00784550Courtesy of SUZUKI OF AMERICA CORP.

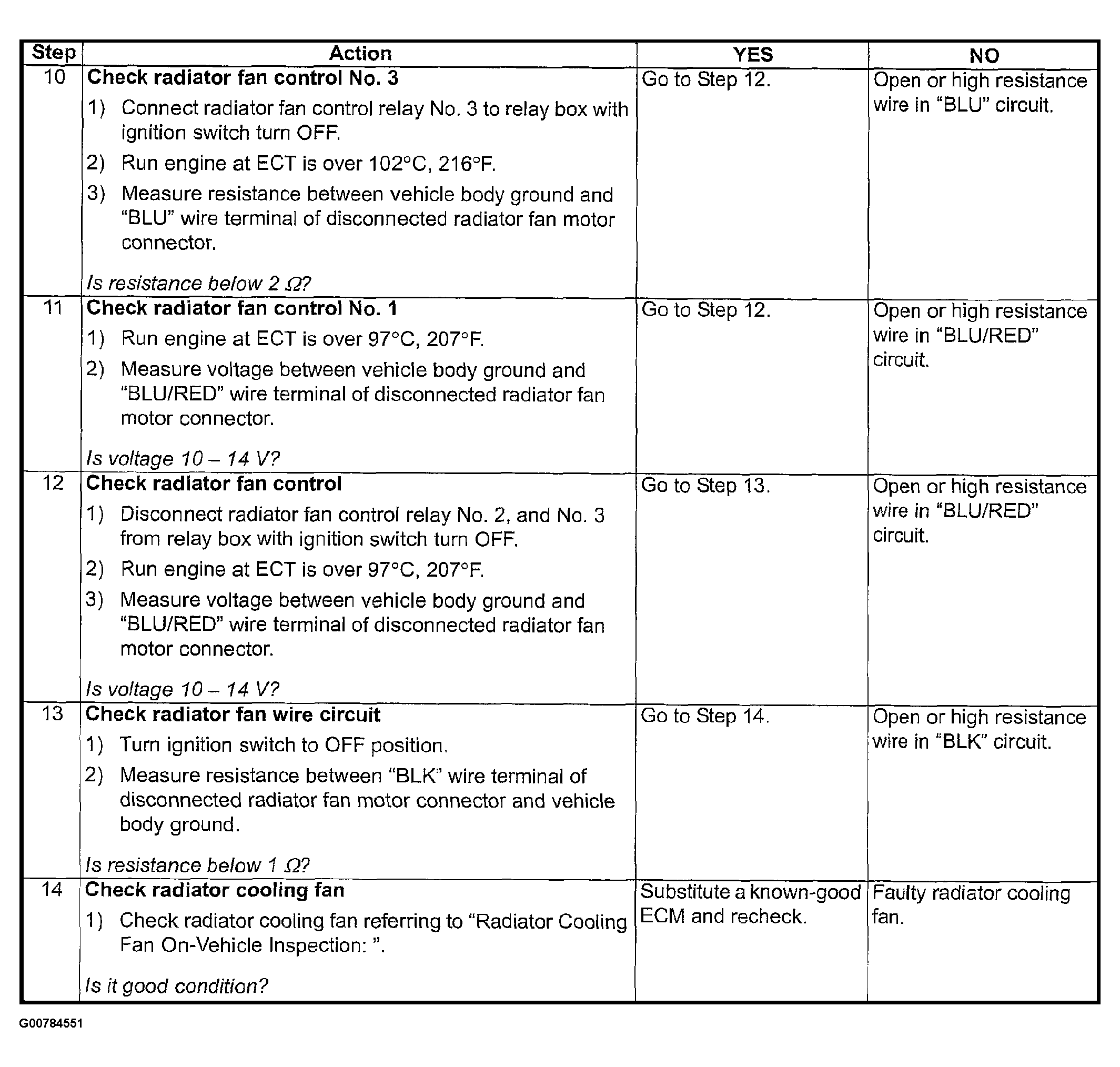

Fig 3: Radiator Fan Control System Troubleshooting Chart (3 of 3)
G00784551Courtesy of SUZUKI OF AMERICA CORP.
