Suzuki
›
2004
›
Aerio S, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
Fuel Delivery
›
Fuel System
›
Repair Instructions
›
Fuel Pump Assembly Components
Fuel Pump Assembly Components

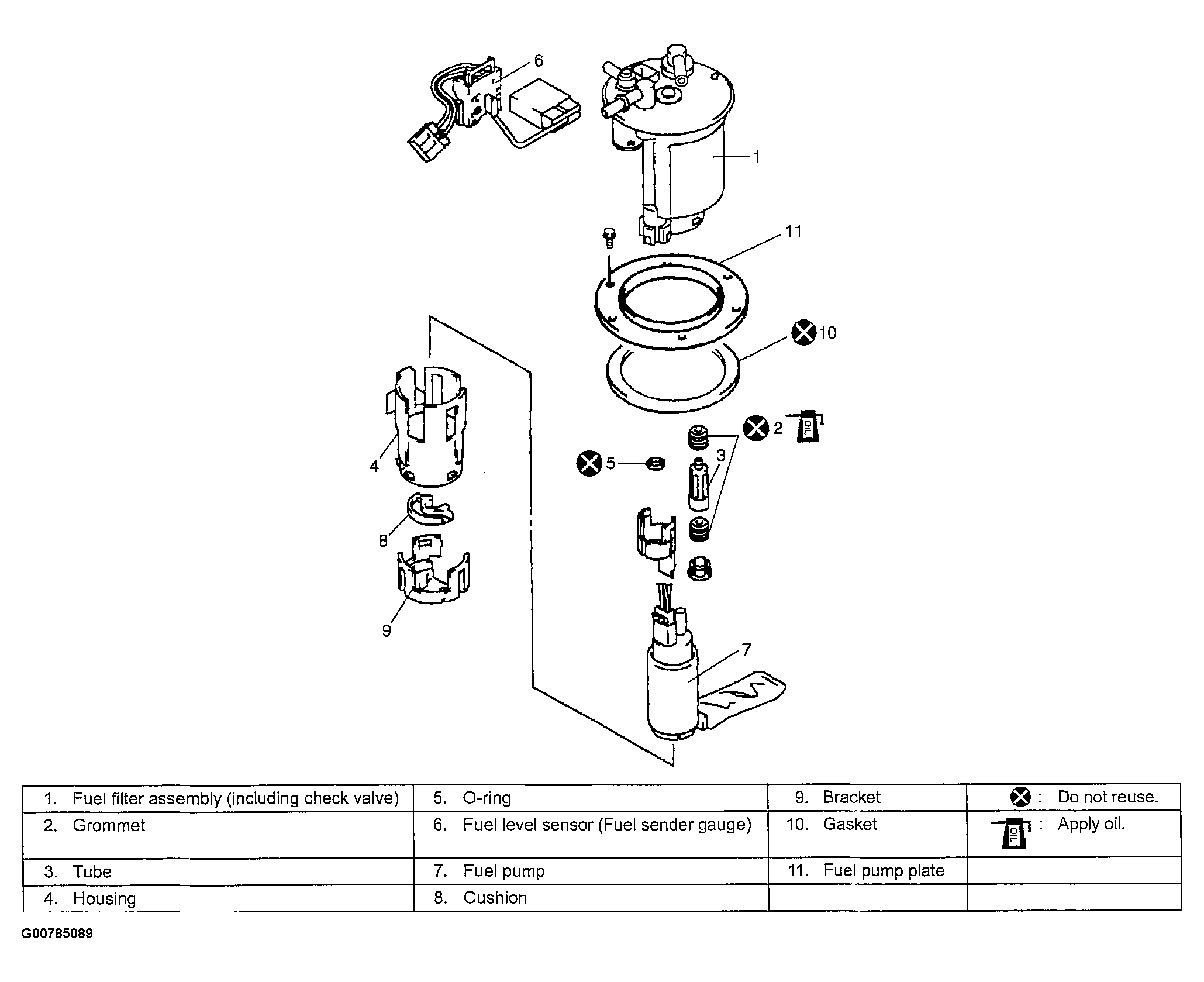

Fig 1: Identifying Fuel Pump Assembly Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
