Tightening Torque Specifications

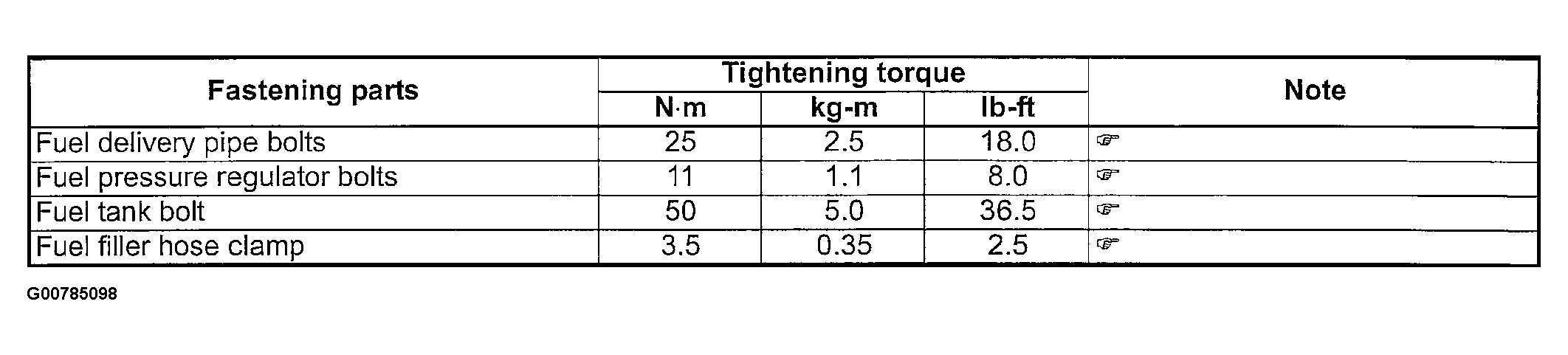

Fig 1: Tightening Torque Specifications (1 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Tightening Torque Specifications (2 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

NOTE:

1. The specified tightening torque is described in the following.

• Fuel System Components  .
