Engine Coolant Temperature (ECT) Sensor Removal and Installation Removal: Installation

Reverse removal procedure noting the following.

• Clean mating surfaces of sensor and water outlet cap.
• Tighten ECT sensor (1) to specified torque.

  Tightening torque

  ECT sensor (a): 13 N.m (1.3 kg-m, 9.5 Lb-ft)

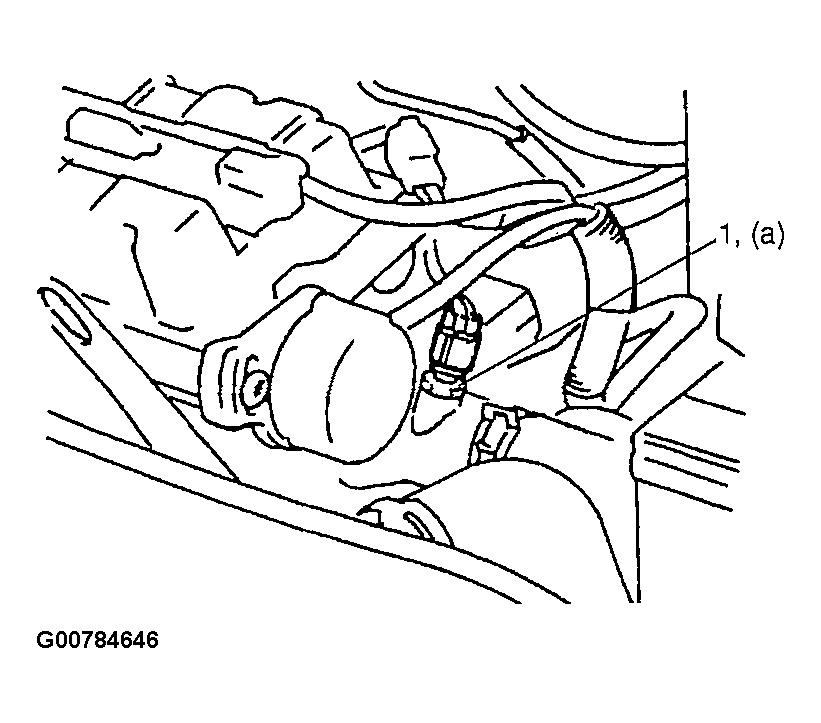

  Fig 1: Connecting Connector To ECT Sensor

  Courtesy of SUZUKI OF AMERICA CORP.
• Connect connector to sensor securely.
• Refill cooling system.
