Tightening Torque Specifications

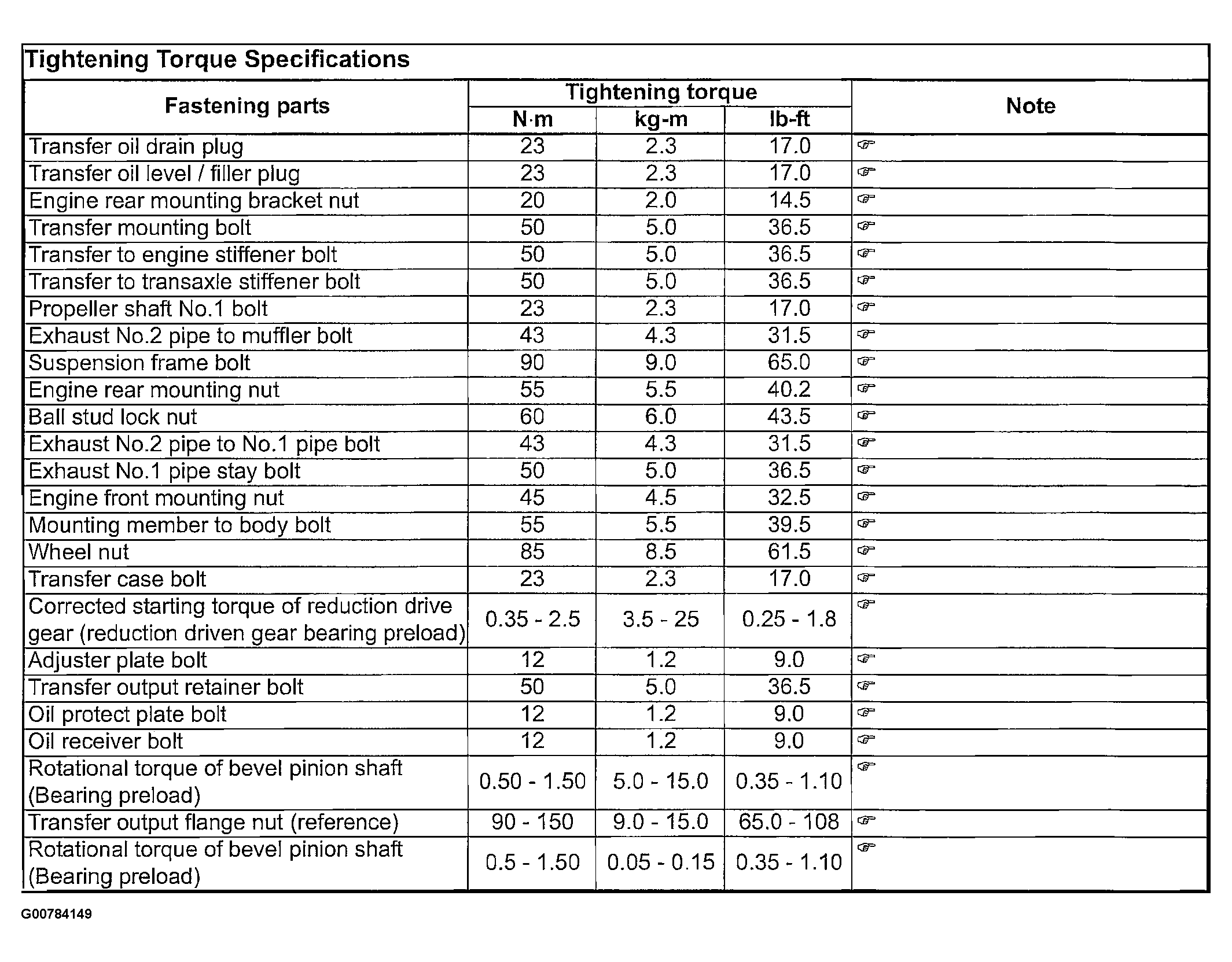

Fig 1: Tightening Torque Specifications

Courtesy of SUZUKI OF AMERICA CORP.

NOTE: The specified tightening torque is described in the following.

• Transfer Assembly Components
