Serial Data Link Circuit Check: Inspection

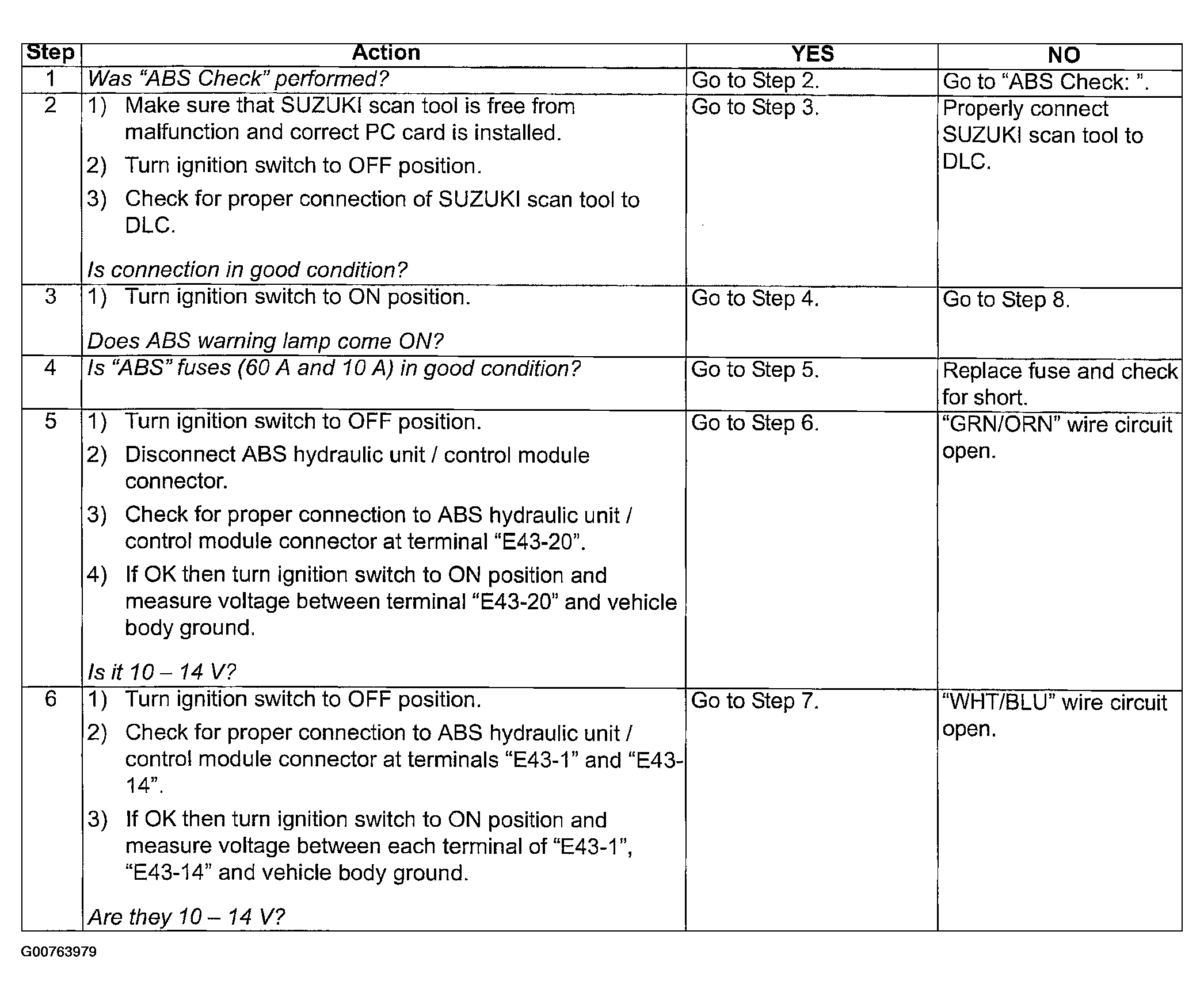

Fig 1: Serial Data Link Circuit Check Chart (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

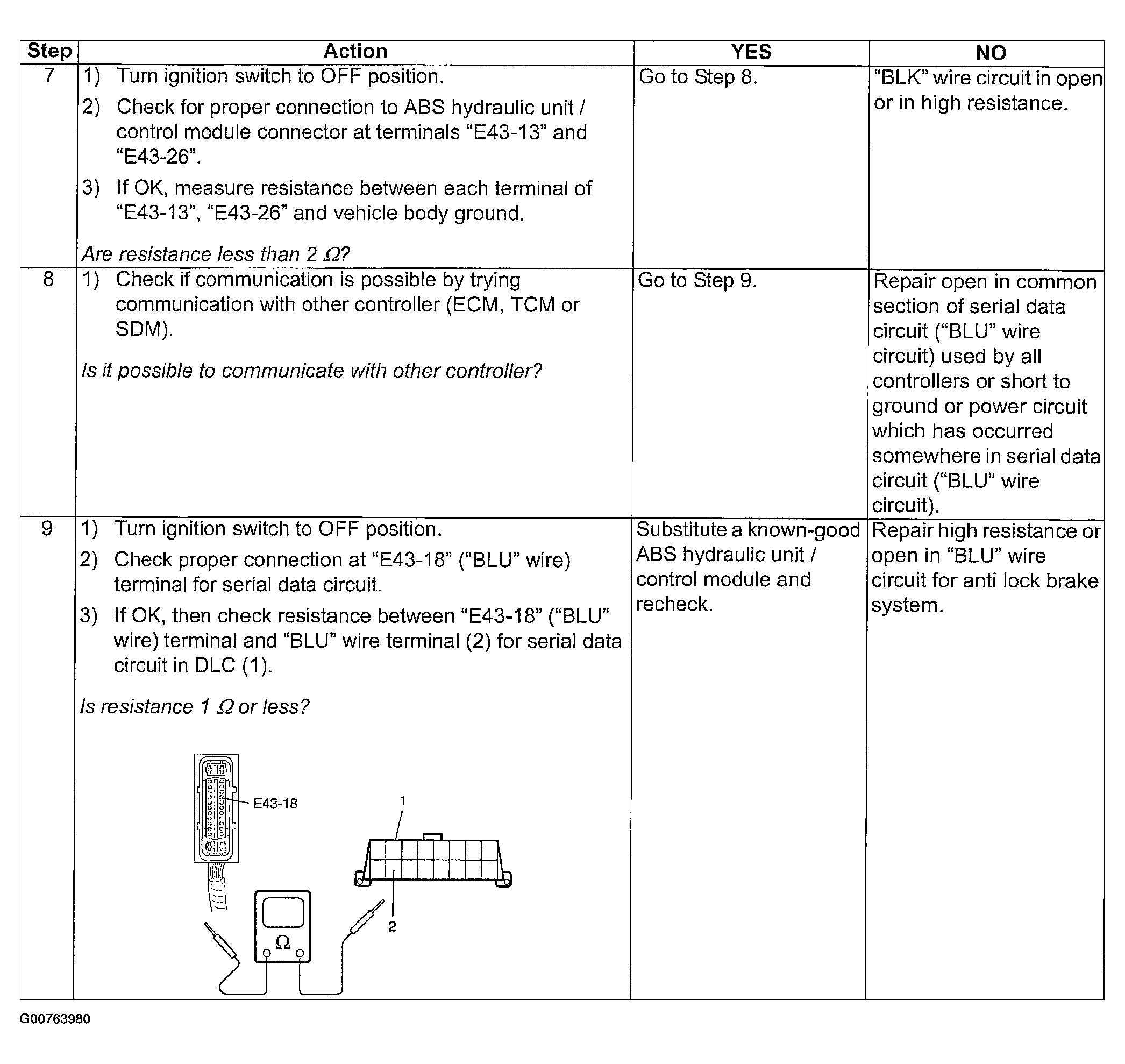

Fig 2: Serial Data Link Circuit Check Chart (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
