Visual Inspection
Visual Inspection
Visually check the following parts and systems.

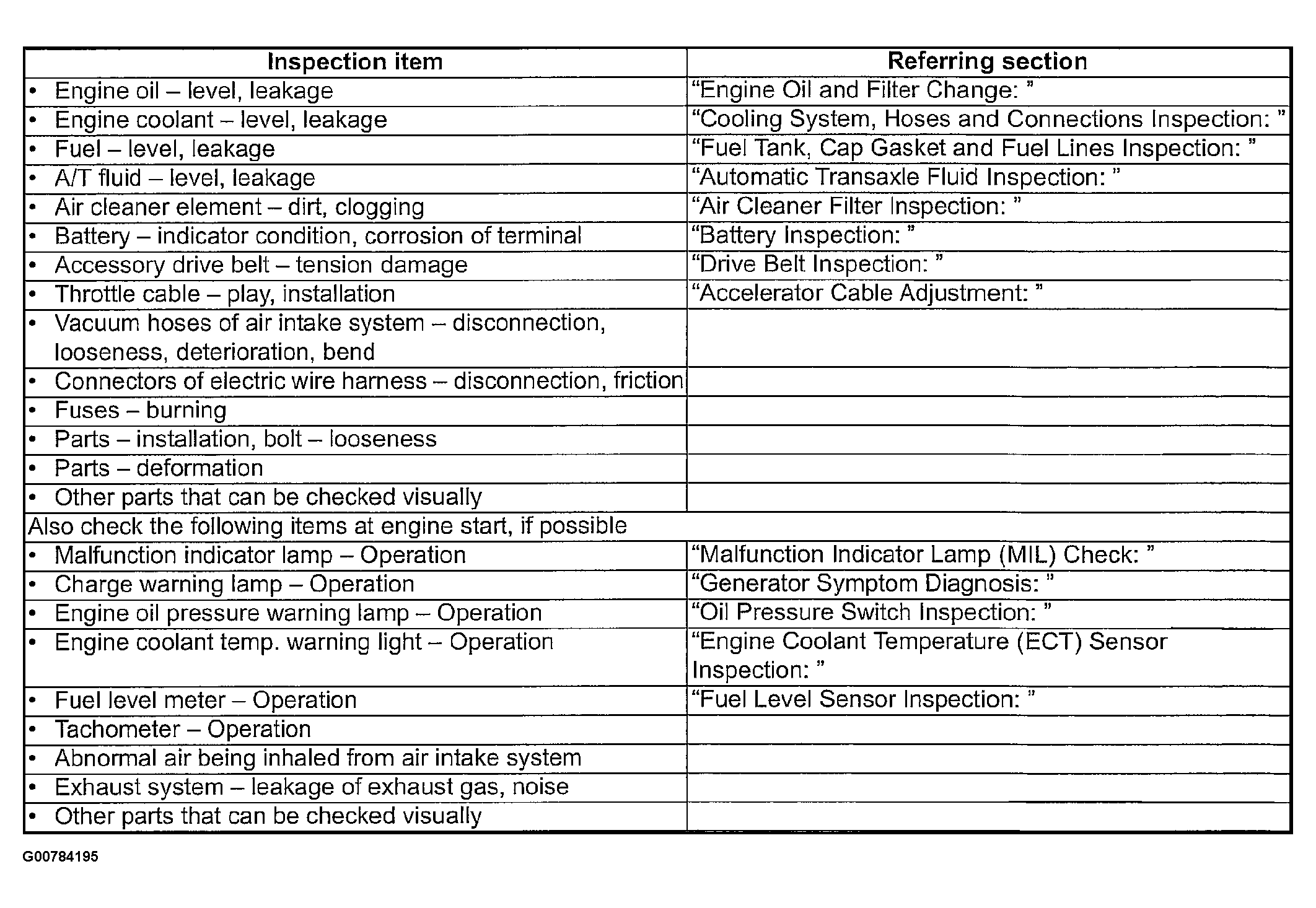

Fig 1: Identifying Visual Inspection
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
