Ignition System Symptom Diagnosis
›
Notes
Ignition System Symptom Diagnosis: Notes

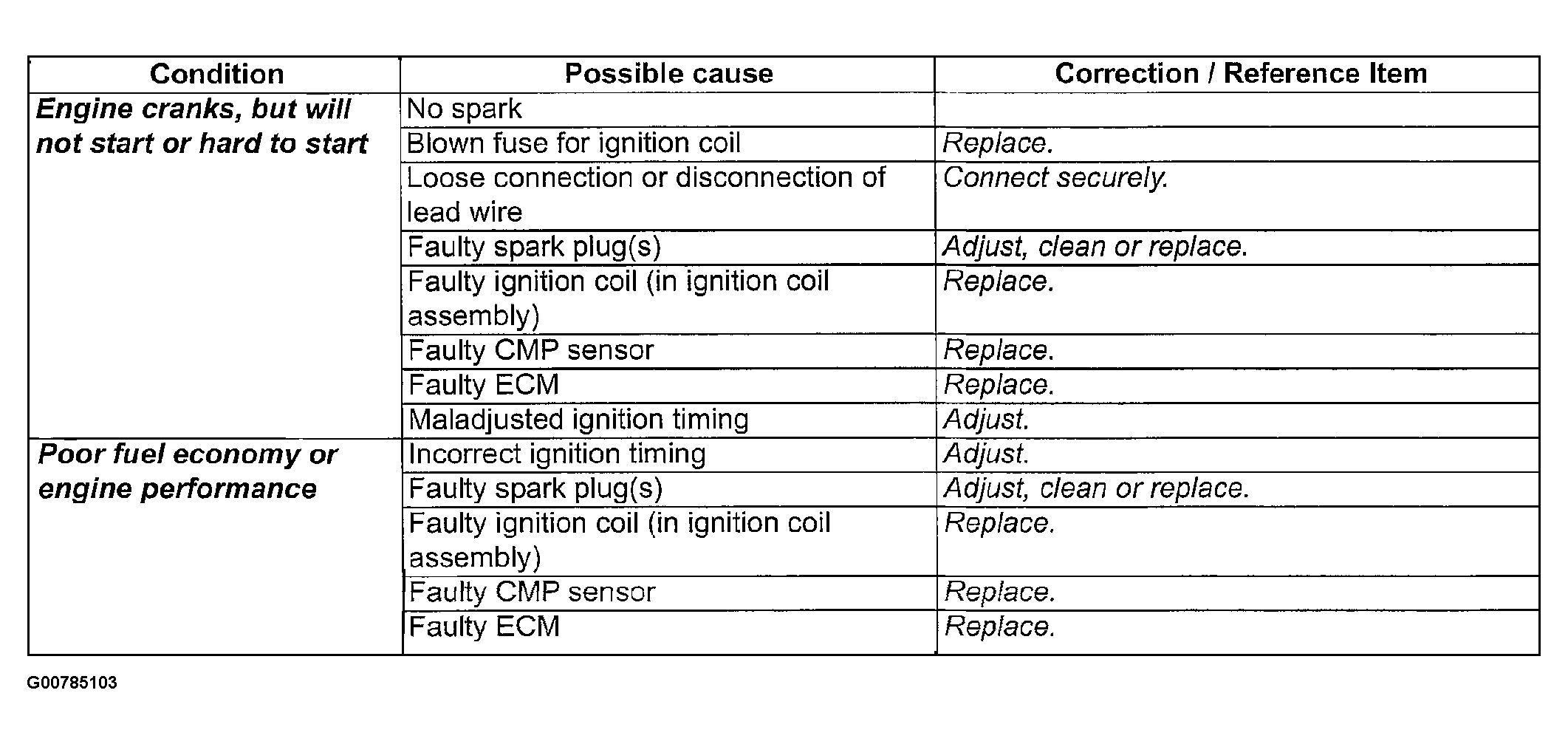

Fig 1: Ignition System Symptom Diagnosis Table
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
