Suzuki
›
2004
›
Aerio SX, AWD
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Anti-Lock Brake Systems
›
General Description
›
Fail-Safe Operation Table
Fail-Safe Operation Table

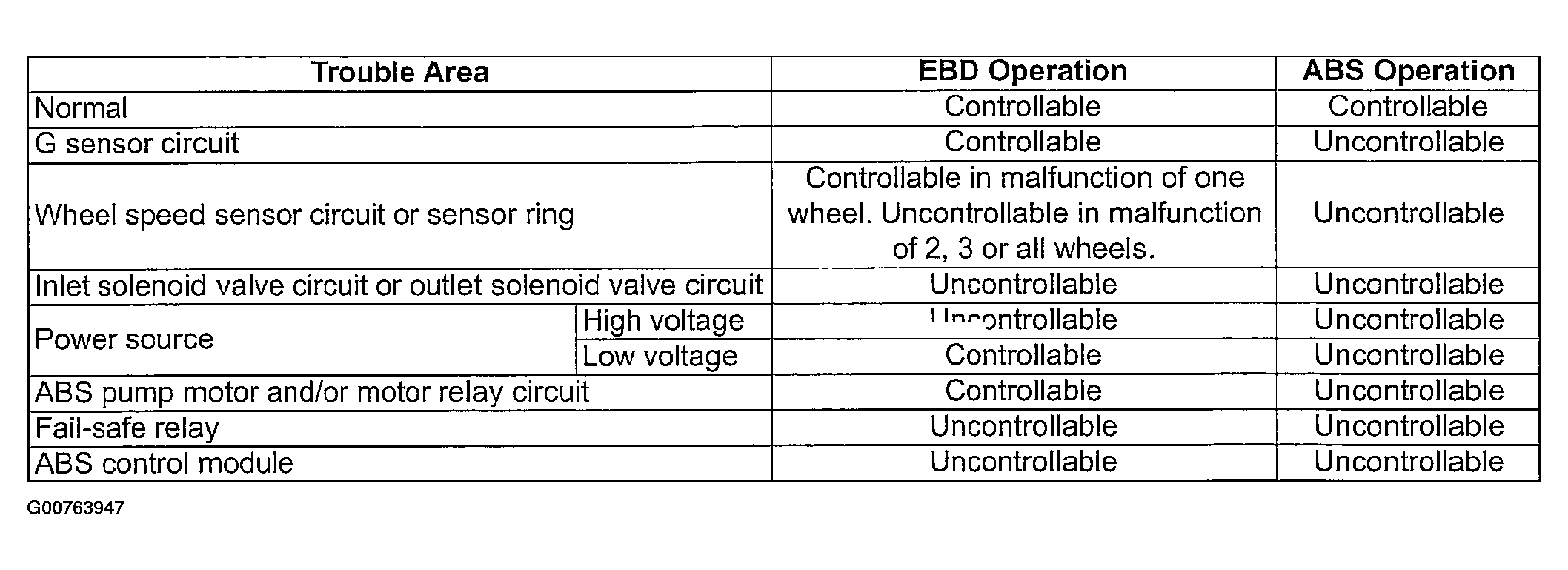

Fig 1: Fail-Safe Operation Table
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
