Spark Plug Removal and Installation: Removal

1. Remove engine cover from cylinder head cover referring to ENGINE COVER REMOVAL AND INSTALLATION .
2. Remove ignition coil (1) referring to Ignition Coil Assembly (Igniter and Ignition Coil) Removal and Installation .
3. Remove spark plug (2).

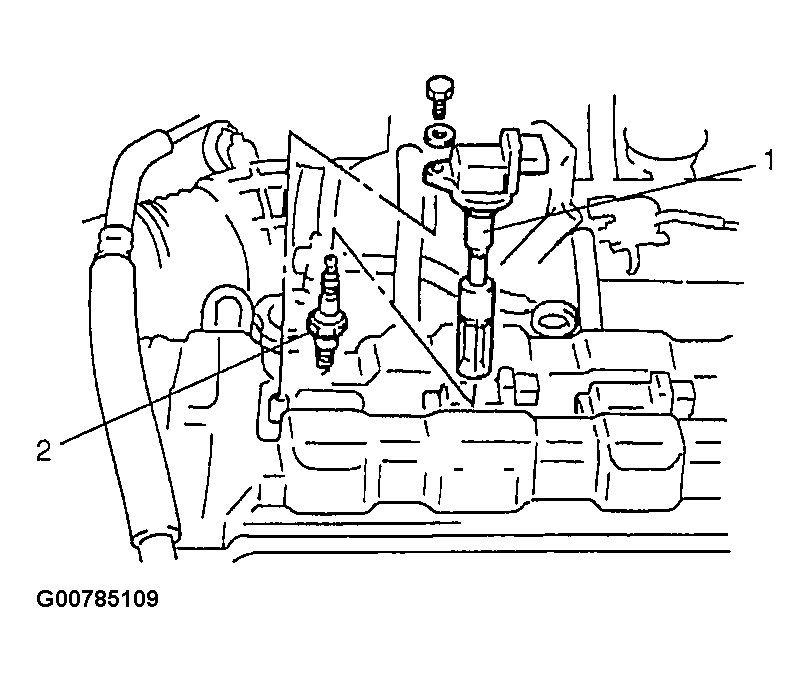

Fig 1: Removing Spark Plug & Ignition Coil

Courtesy of SUZUKI OF AMERICA CORP.
