Power Window Regulator Removal and Installation: Installation

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
  1. Install the window regulator with the nuts.

    Tighten

    Tighten the window regulator nuts to 8 N.m (71 lb-in).

  2. Connect the electrical connector.
  3. Install the door glass. Refer to Front Door Glass Removal and Installation  .
  4. Connect the negative battery cable.

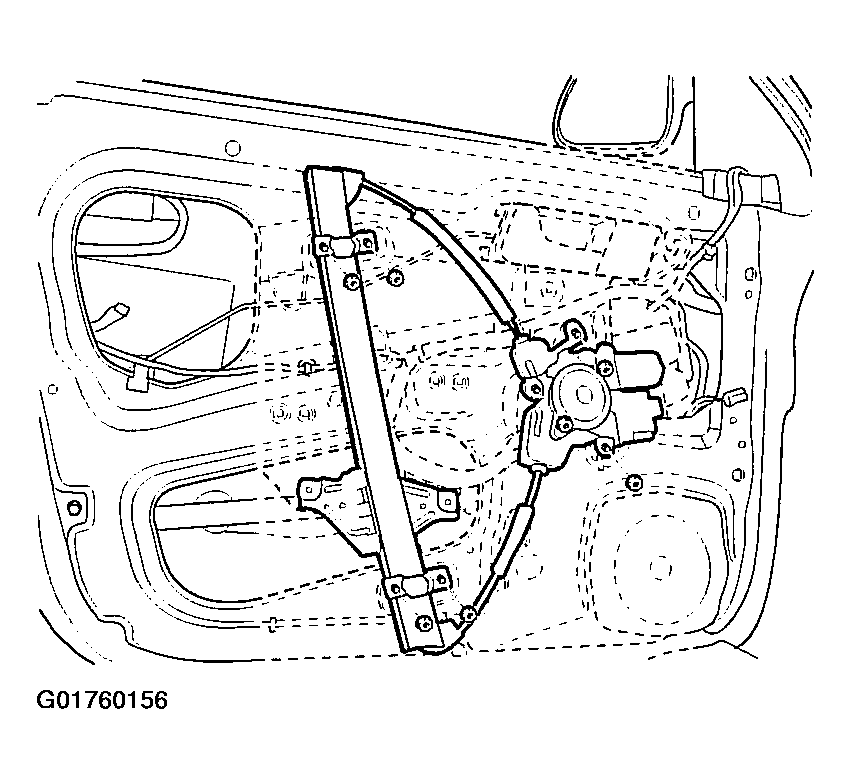

    Fig 1: Installing Window Regulator With Nuts
    G01760156Courtesy of SUZUKI OF AMERICA CORP.
