DTC C0550: ABS Control Module Internal Fault
›
Notes
DTC C0550: ABS Control Module Internal Fault: Notes

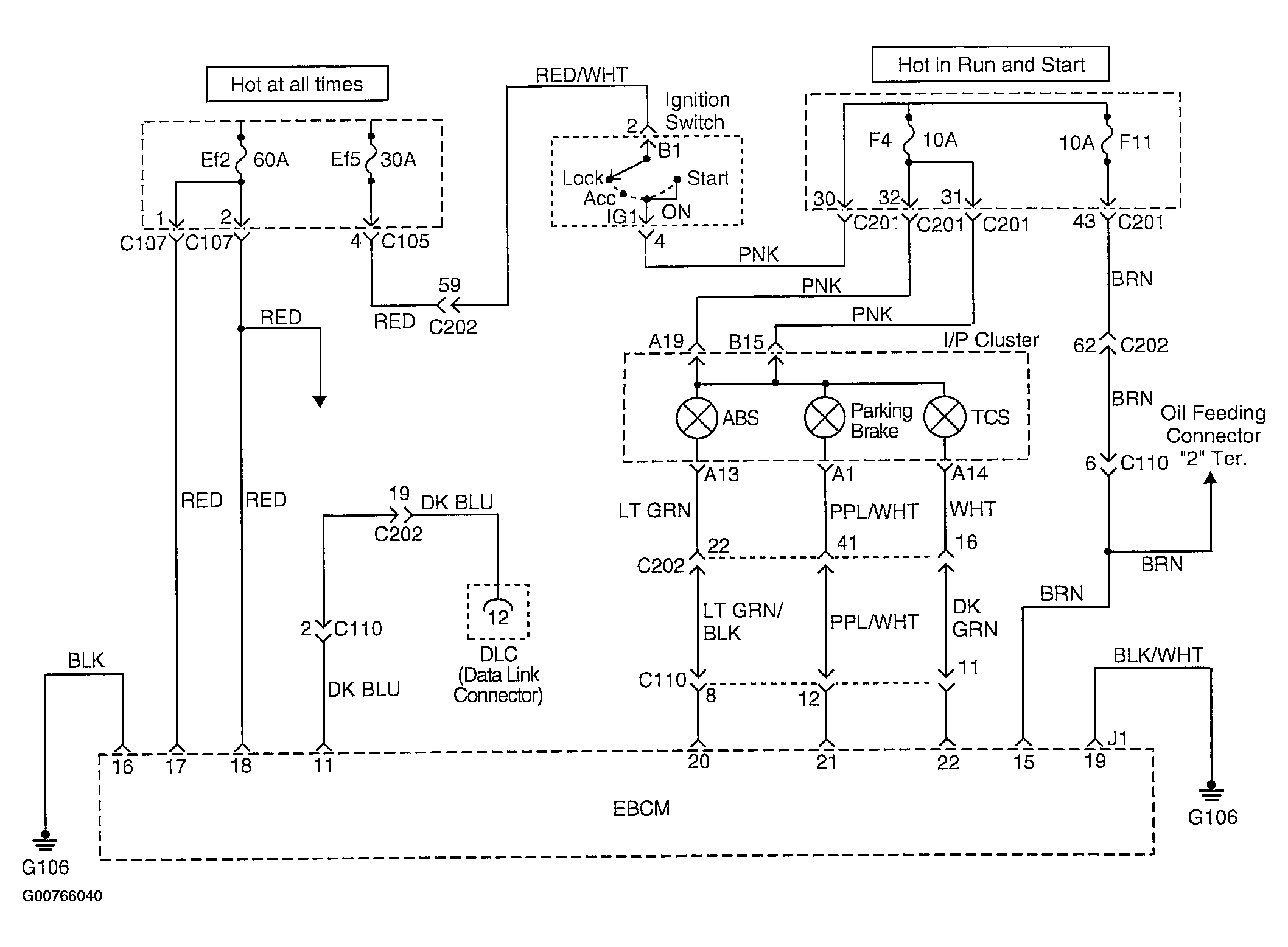

Fig 1: DTC C0550 ABS Control Module Internal Fault - Diagnostic Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
