Fuel Pump Relay Circuit Check
›
Notes
Fuel Pump Relay Circuit Check: Notes

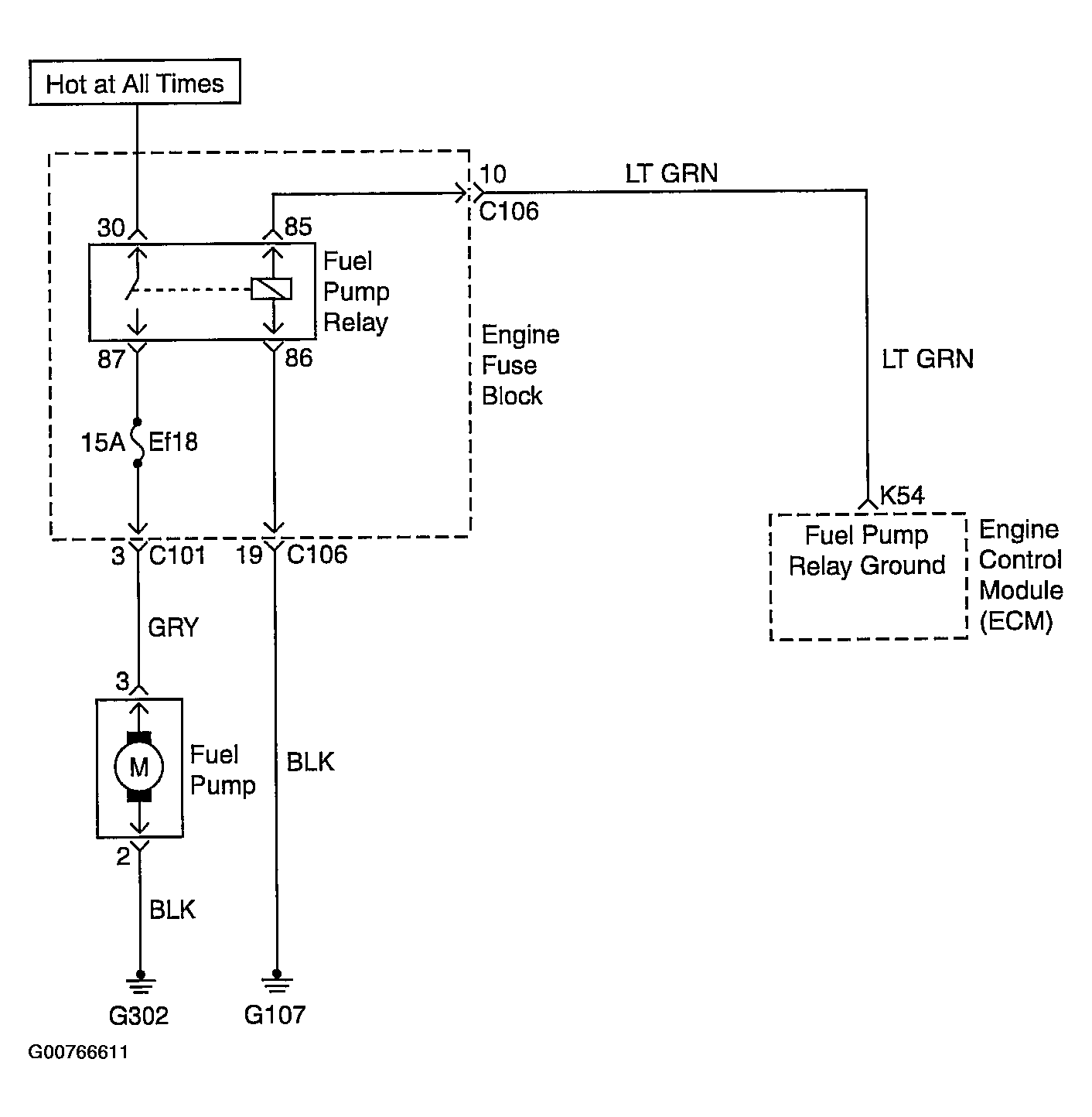

Fig 1: Fuel Pump Relay Circuit Check - System Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
