Pump Assembly Removal and Installation: Notes

NOTE: The unit repair of the power steering pump in this vehicle is not serviceable. A faulty pump must be replaced with a new one.

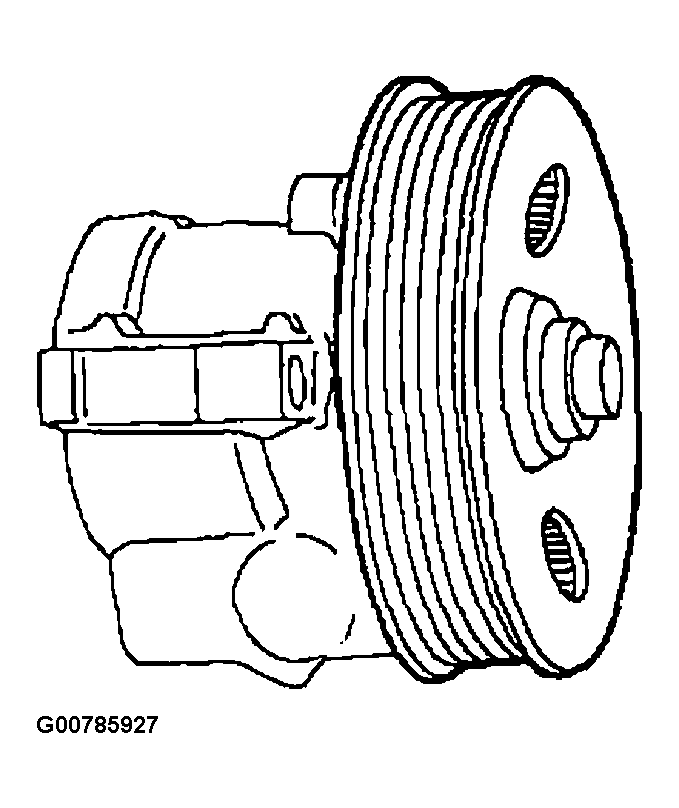

Fig 1: Identifying Pump Assembly

Courtesy of SUZUKI OF AMERICA CORP.
