DTC P0601: Internal Control Module Memory Checksum Error
›
Diagnostic Aids
Diagnostic Aids
When DTC P0601 sets, the possible cause of fault could be TCM.

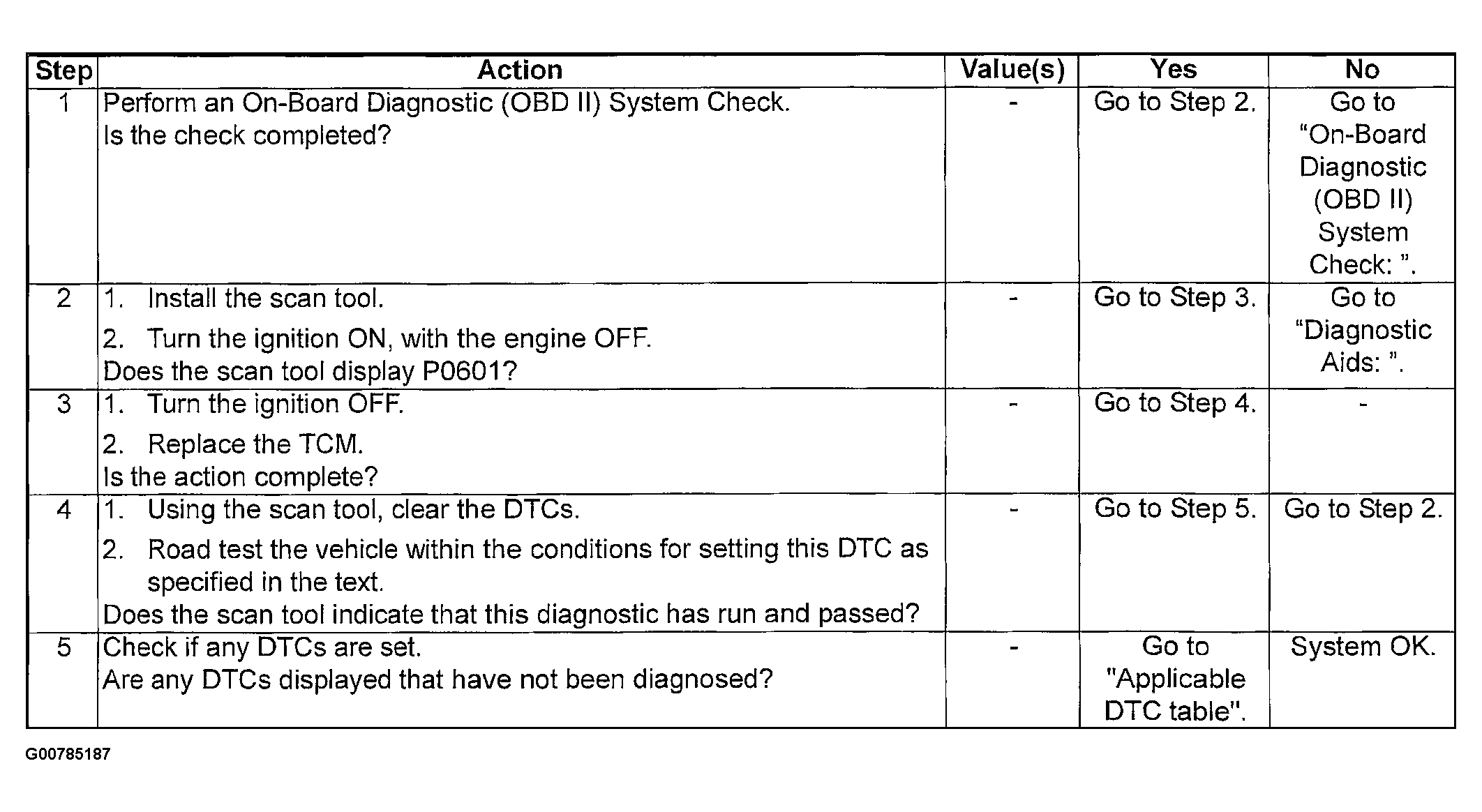

Fig 1: DTC P0601 Internal Control Module Memory Checksum Error Diagnostic Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
