Diagnostic Trouble Codes Identification
›
DTC P0604: Internal Control Module Random Access Memory (RAM) Error
›
Diagnostic Aids
Diagnostic Aids
When DTC P0604 sets, the replacement of TCM is recommended.

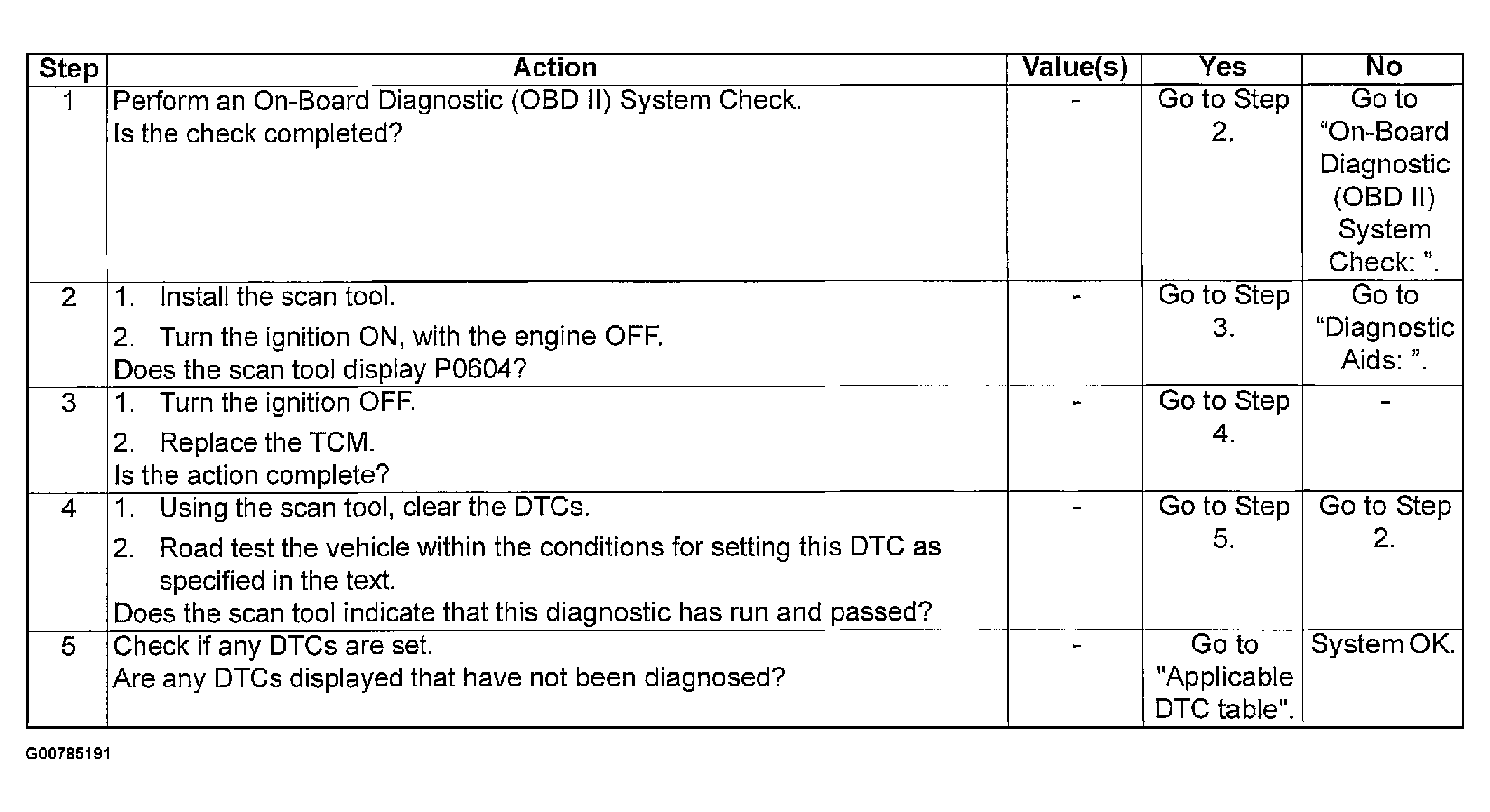

Fig 1: DTC P0604 Internal Control Module Random Access Memory (RAM) Error Diagnostic Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
