DTC P0604: Internal Control Module Random Access Memory (RAM) Error: Notes

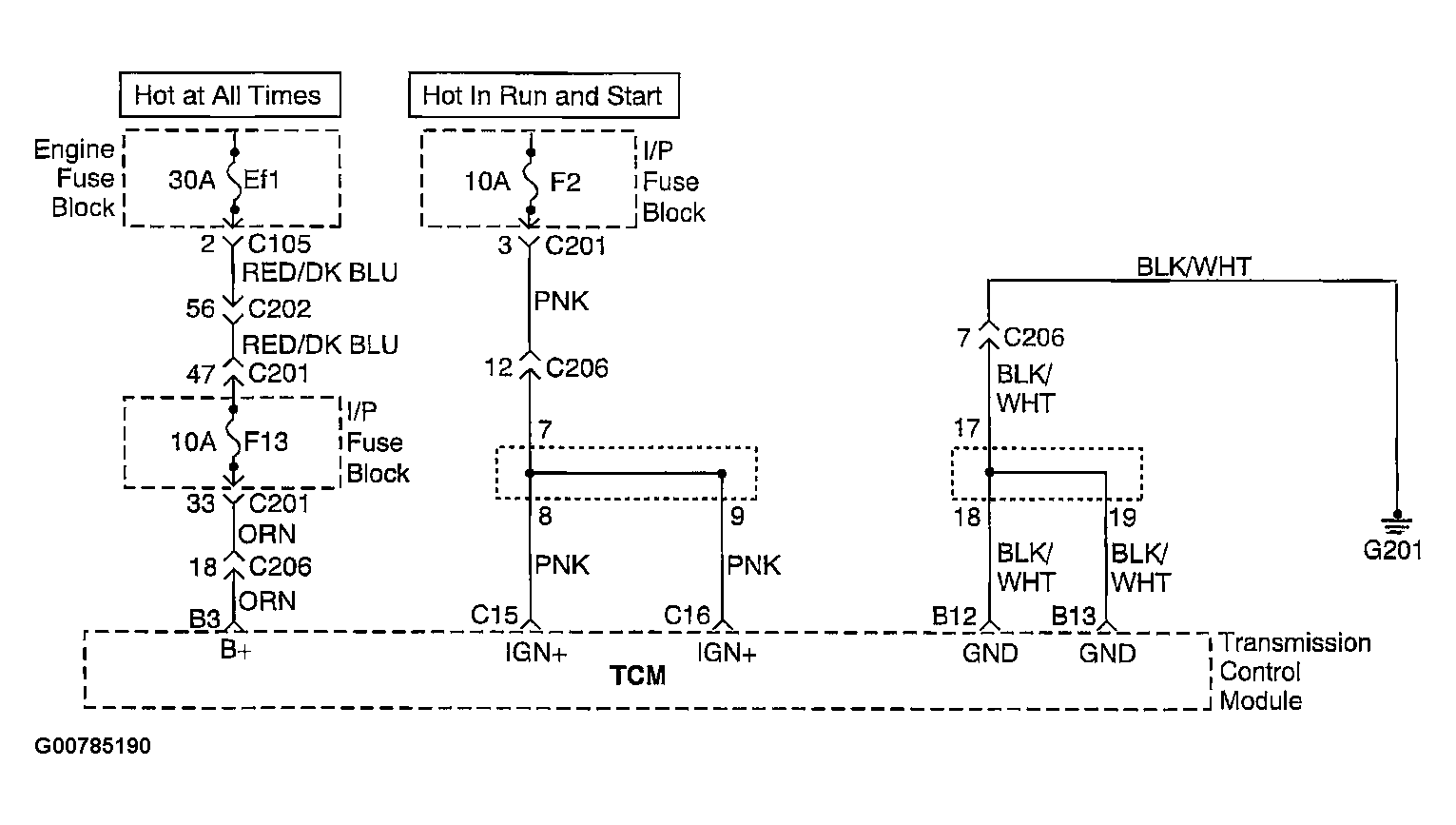

Fig 1: DTC P0604 Internal Control Module Random Access Memory (RAM) Error - Diagnostic Wiring Diagram

Courtesy of SUZUKI OF AMERICA CORP.
