Transaxle Control Module (TCM) Removal and Installation: Removal

1. Disconnect the negative battery cable.
2. Disconnect the wiring connectors.
3. Remove the transaxle control module (TCM) from the bracket.

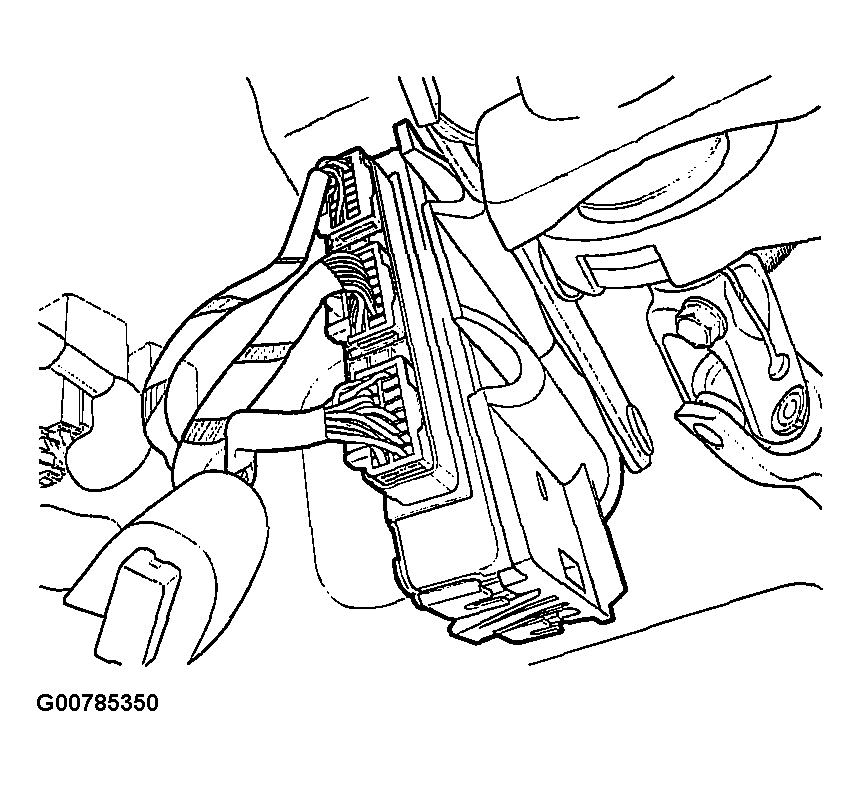

Fig 1: Removing The Transaxle Control Module

Courtesy of SUZUKI OF AMERICA CORP.
