Clutch Components
Clutch Components

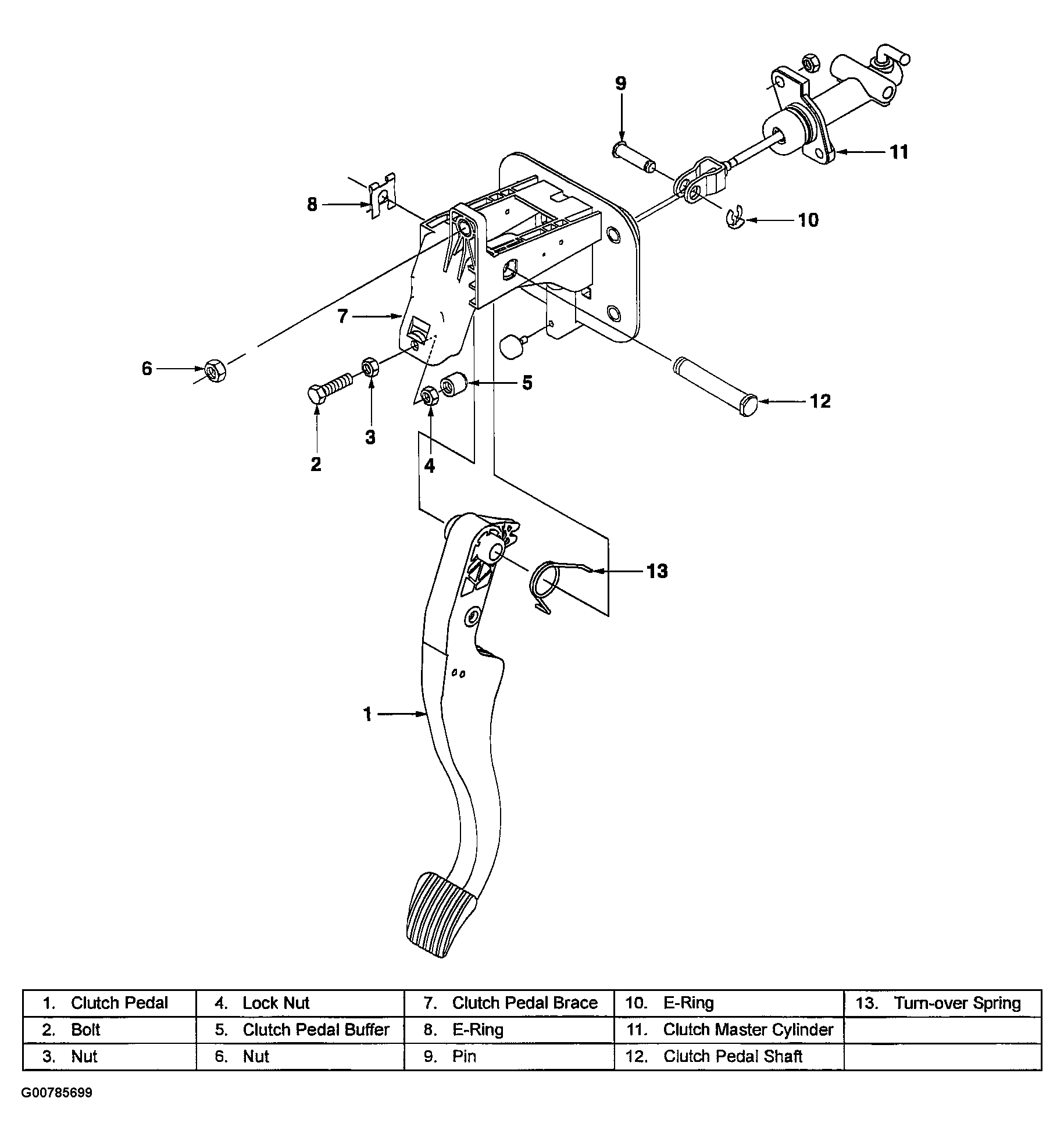

Fig 1: Identifying Clutch Components (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

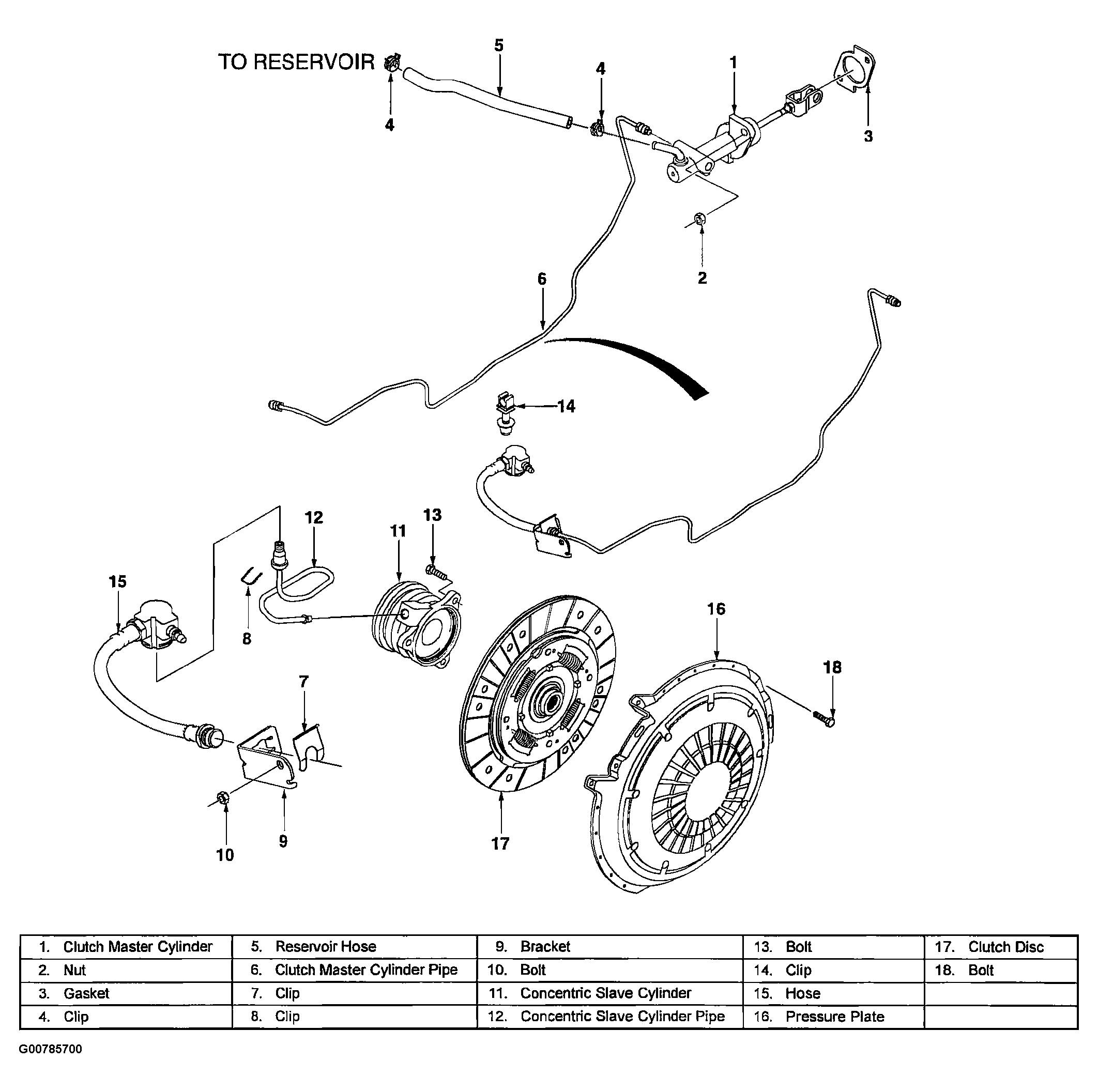

Fig 2: Identifying Clutch Components (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
