Tightening Torque Specifications

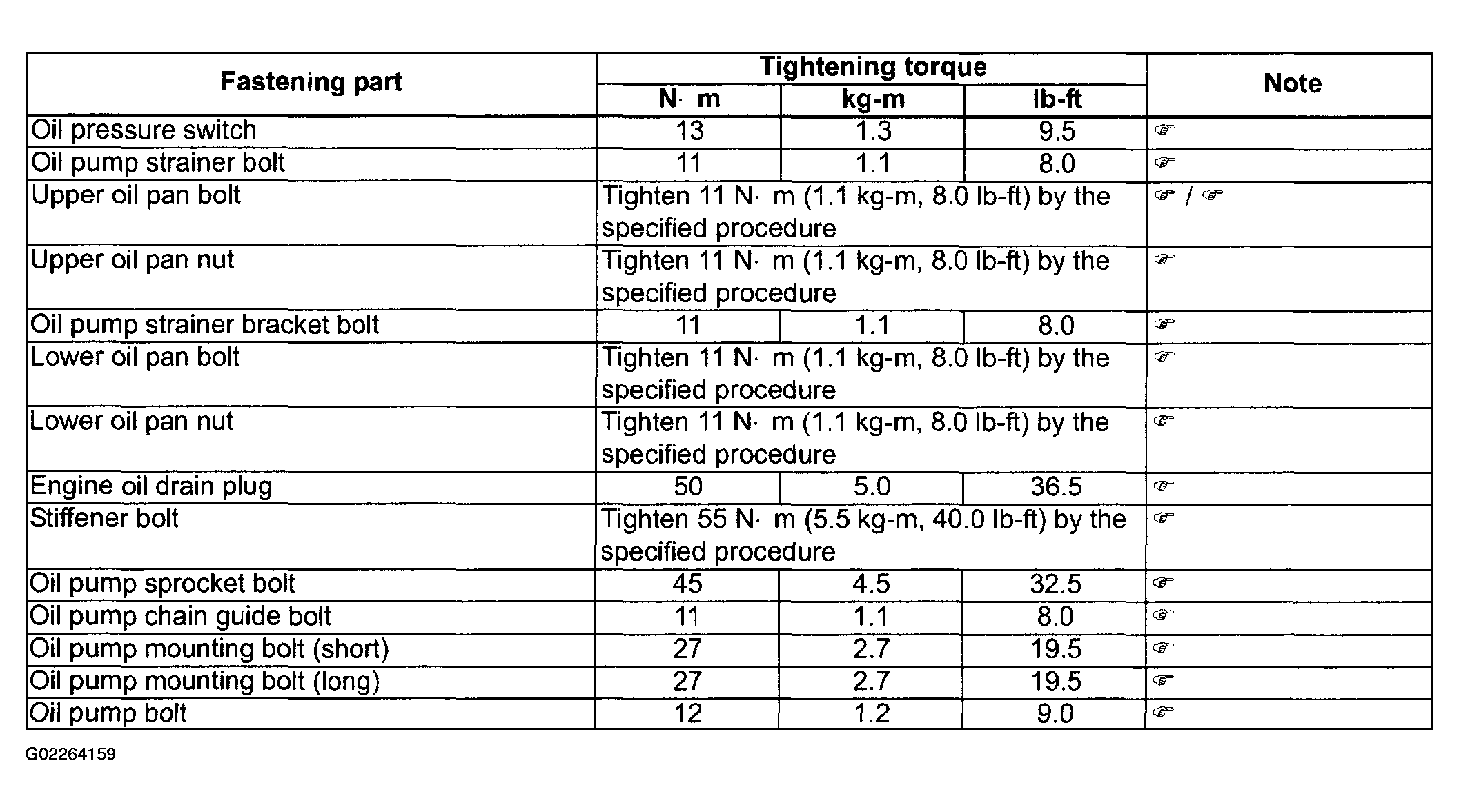

Fig 1: Tightening Torque Specifications

Courtesy of SUZUKI OF AMERICA CORP.

NOTE: The specified tightening torque is also described in the following; OIL PAN & OIL PUMP STRAINER COMPONENTS  , OIL PUMP CHAIN COMPONENTS  and OIL PUMP COMPONENTS  .
