Engine Basic Check

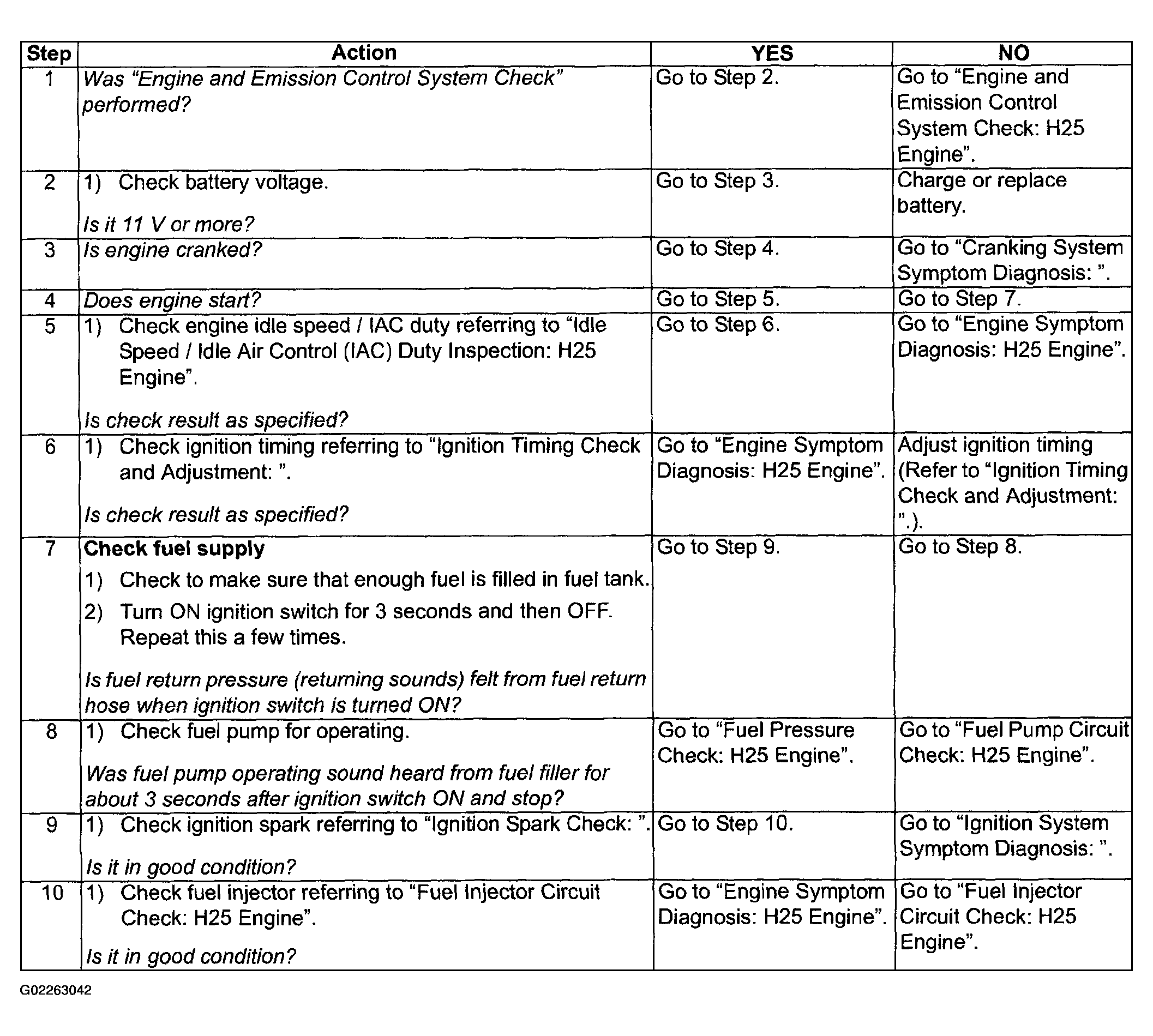

Fig 1: Engine Basic Check Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
