Engine Basic Check

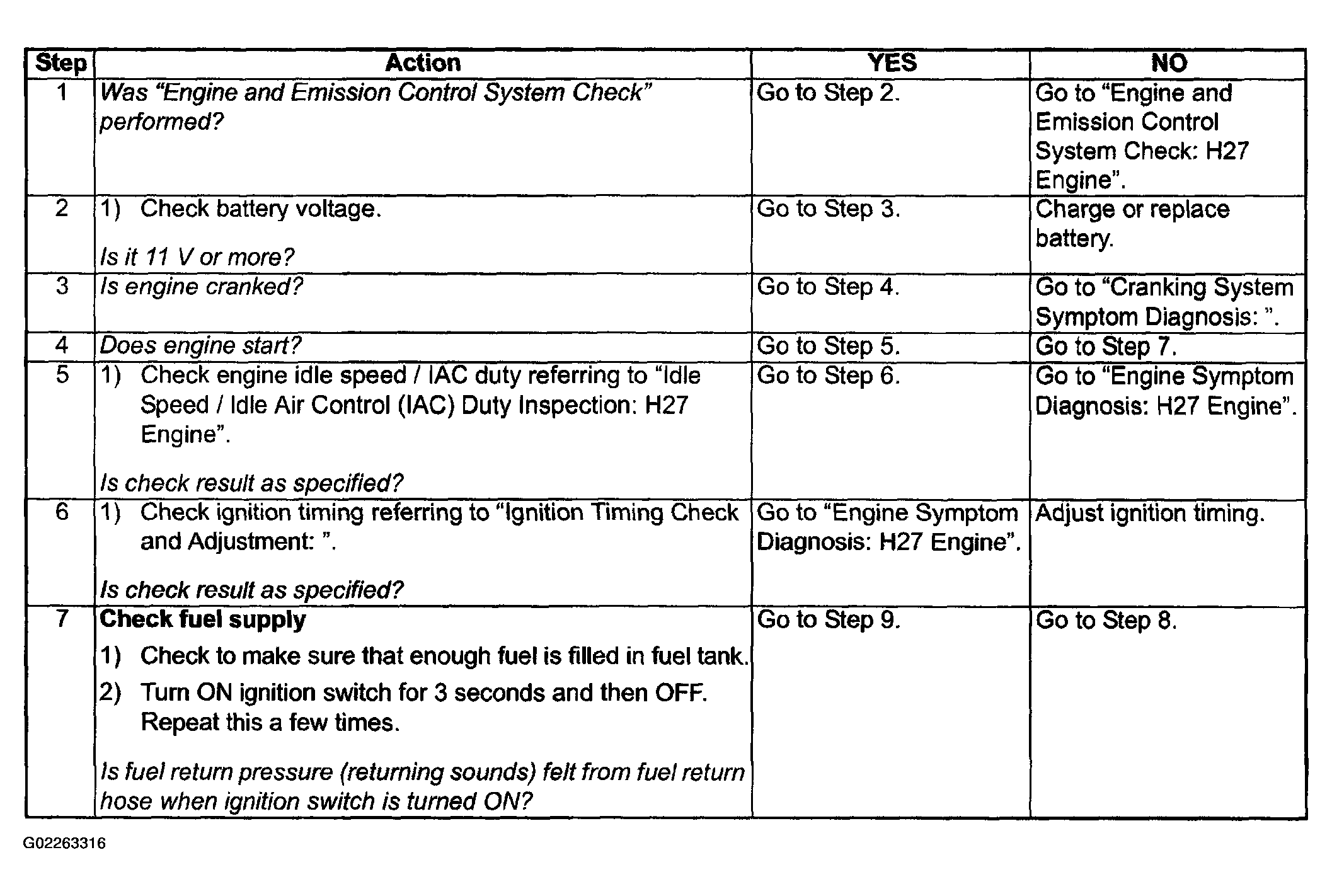

Fig 1: Engine Basic Check Chart (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

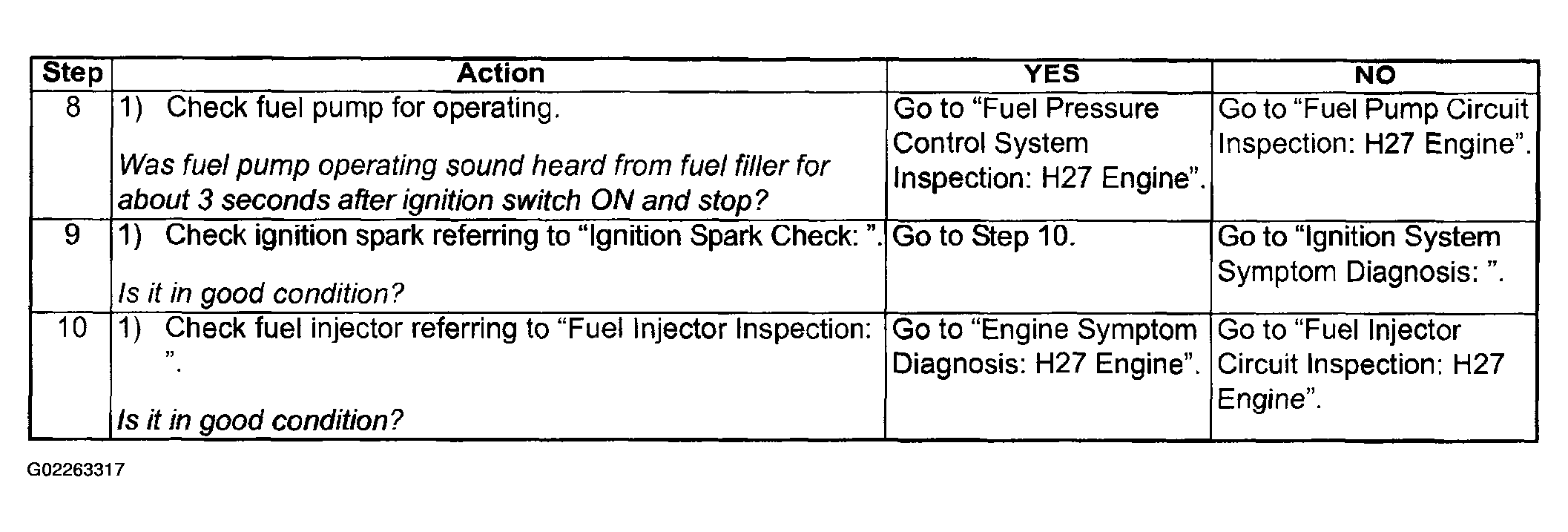

Fig 2: Engine Basic Check Chart (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
