Installation Procedure

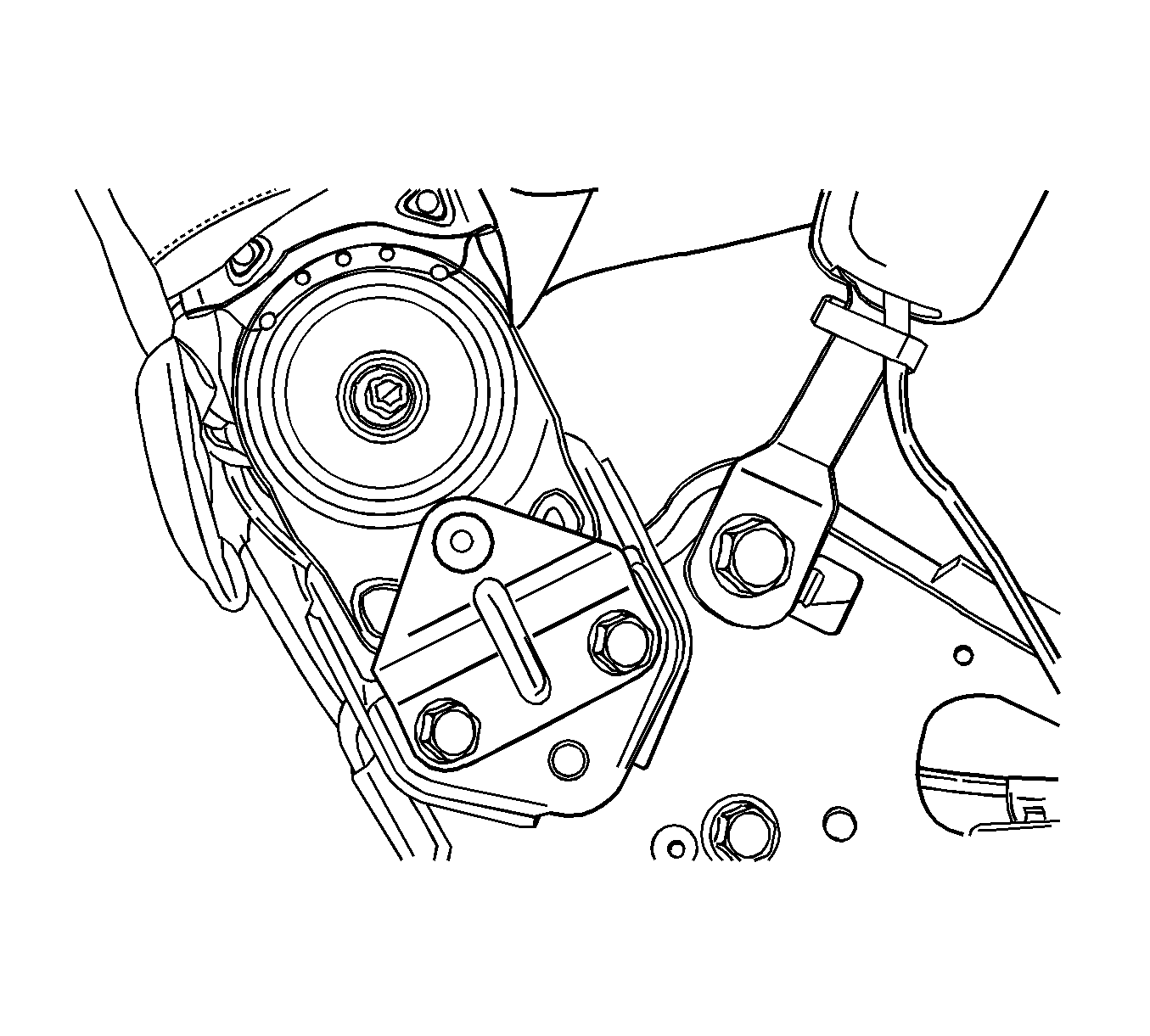

Fig 1: View of Seat Back and Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the seat back bolts to the seat cushion.
Tighten: Tighten the seat back bolts to 25 N.m (18 lb ft).

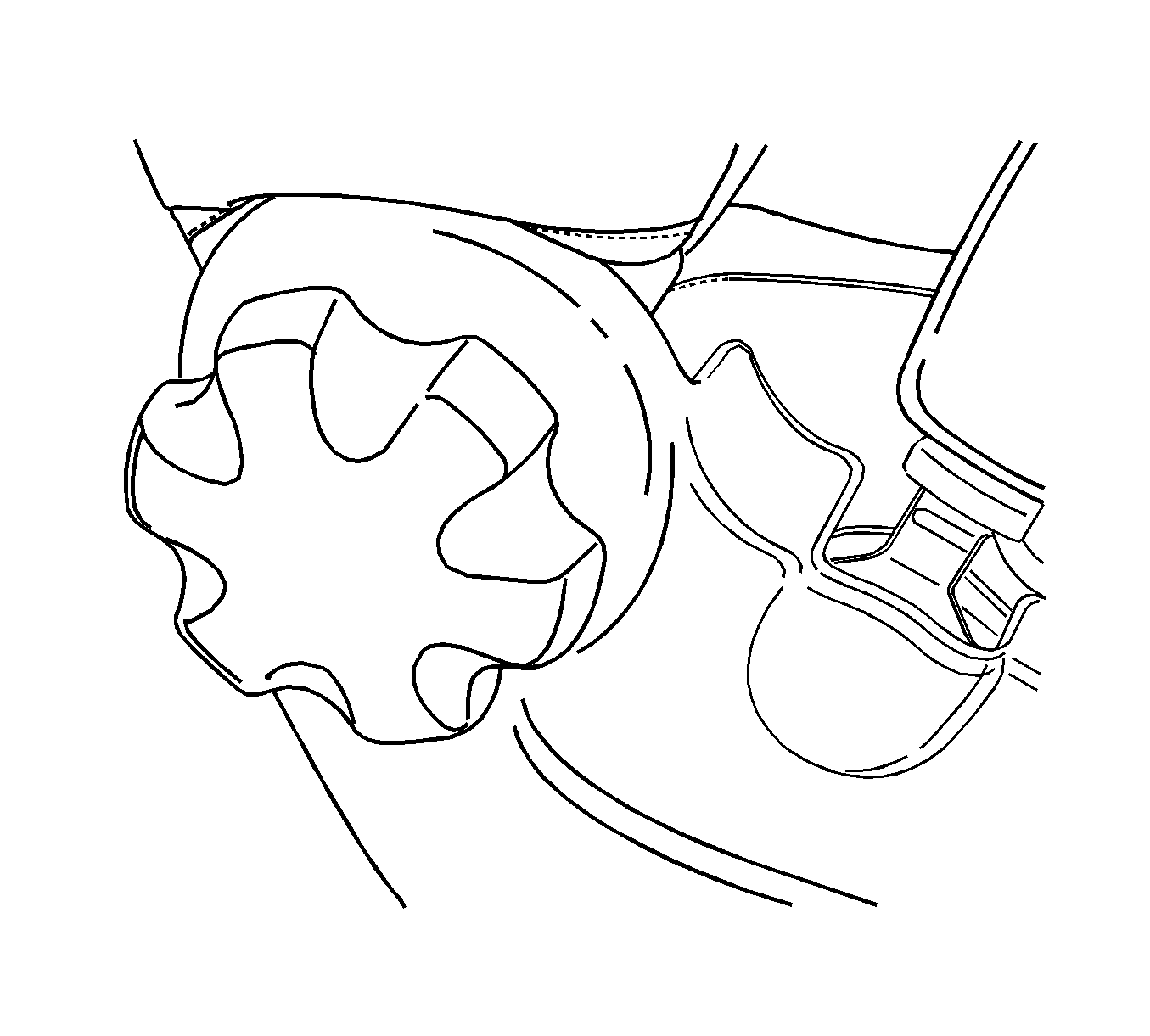

Fig 2: View of Recliner Adjustment Knob

Courtesy of GENERAL MOTORS CORP.

Install the recliner cover.
Install the recliner adjustment knob.
Install the front bucket seat in the vehicle. Refer to Seat Replacement - Front Bucket .
