Defogger Schematics

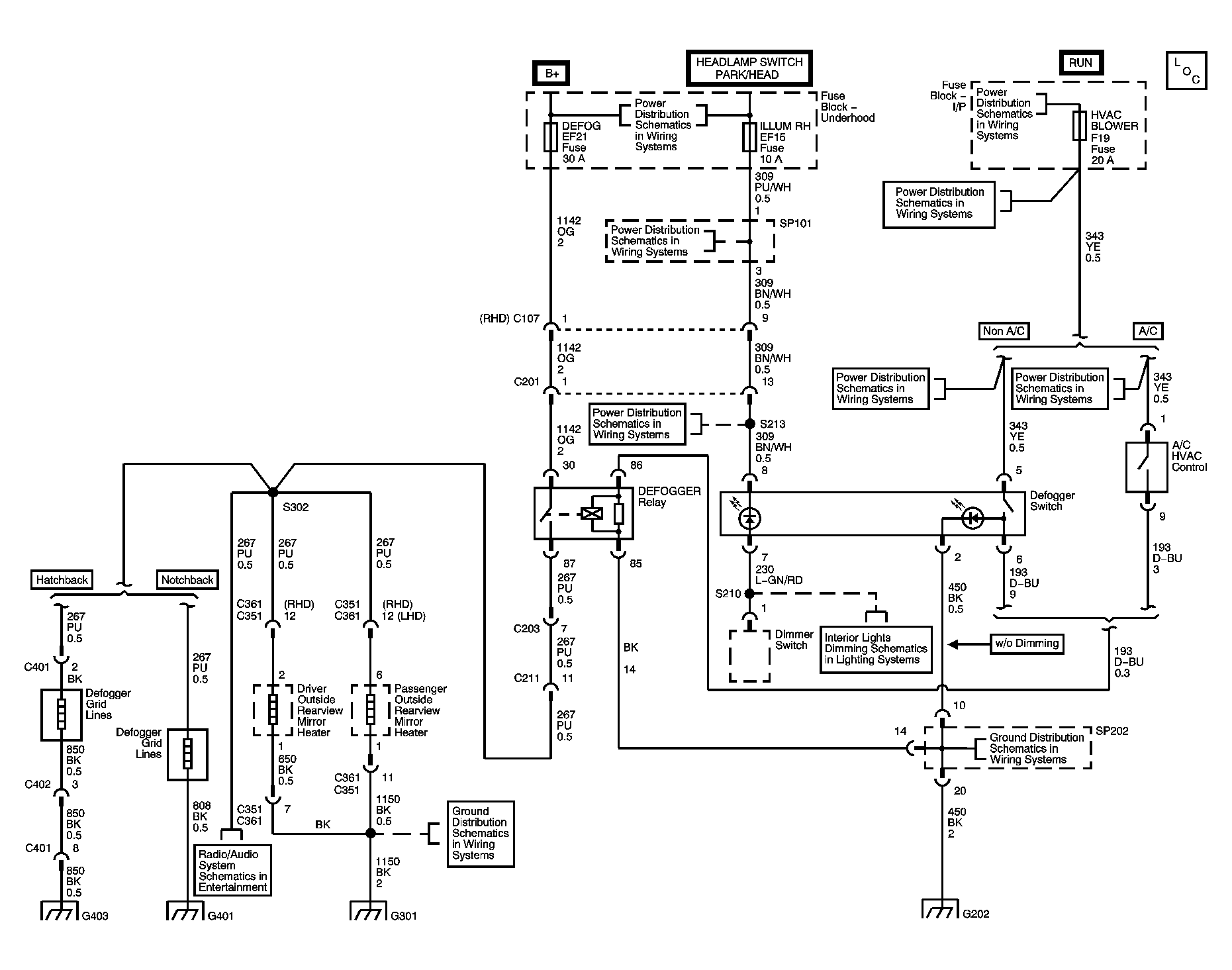

Fig 1: Rear Window Defogger and Heated Mirrors Schematics
GM1257921Courtesy of GENERAL MOTORS CORP.
