ABS Component Views

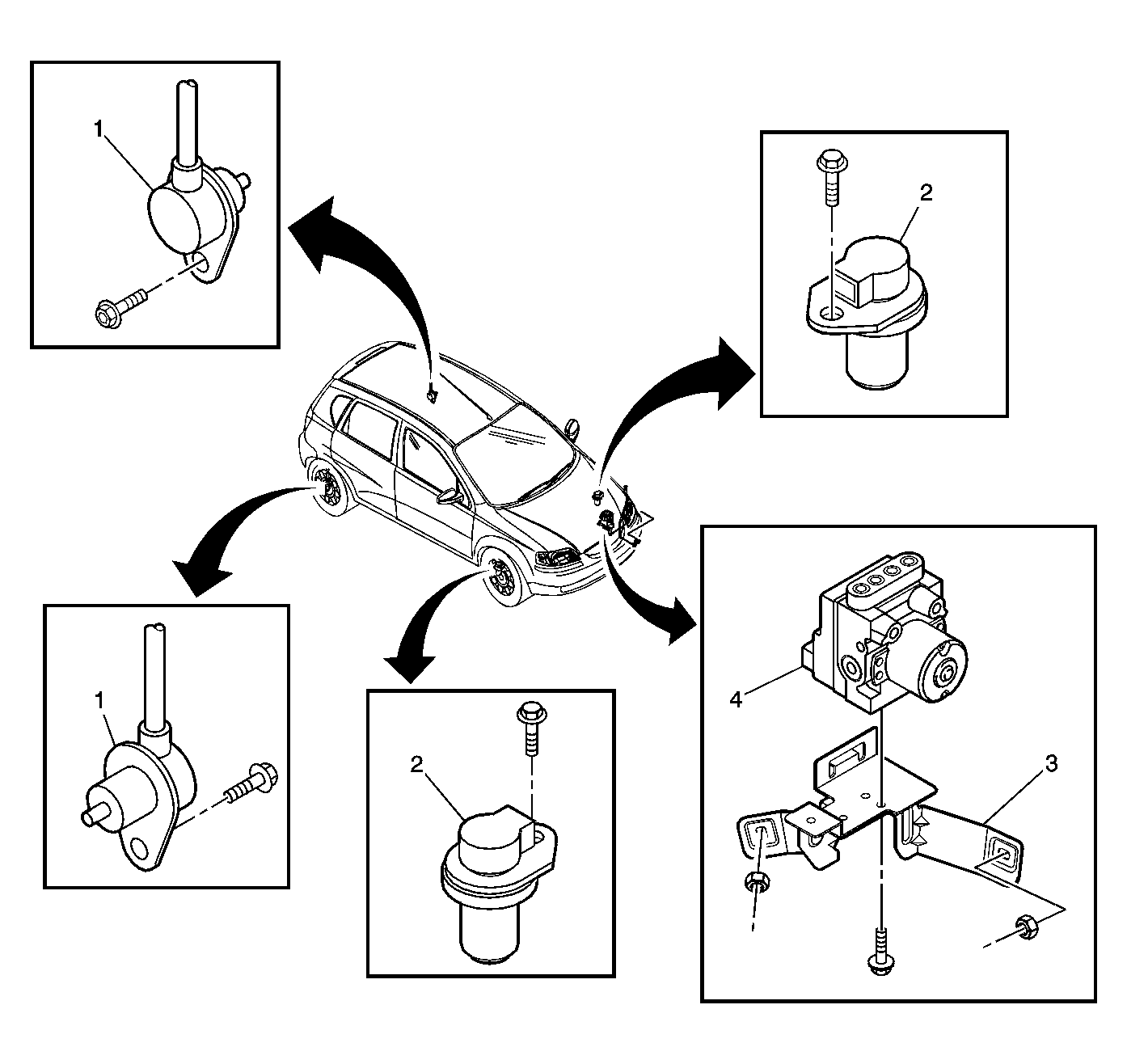

Fig 1: ABS Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Wheel Speed Sensor - Right and Left
2	Front Wheel Speed Sensor - Right and Left
3	Mounting Bracket
4	Electronic Brake Control Module (EBCM) and Brake Pressure Modulator Valve
