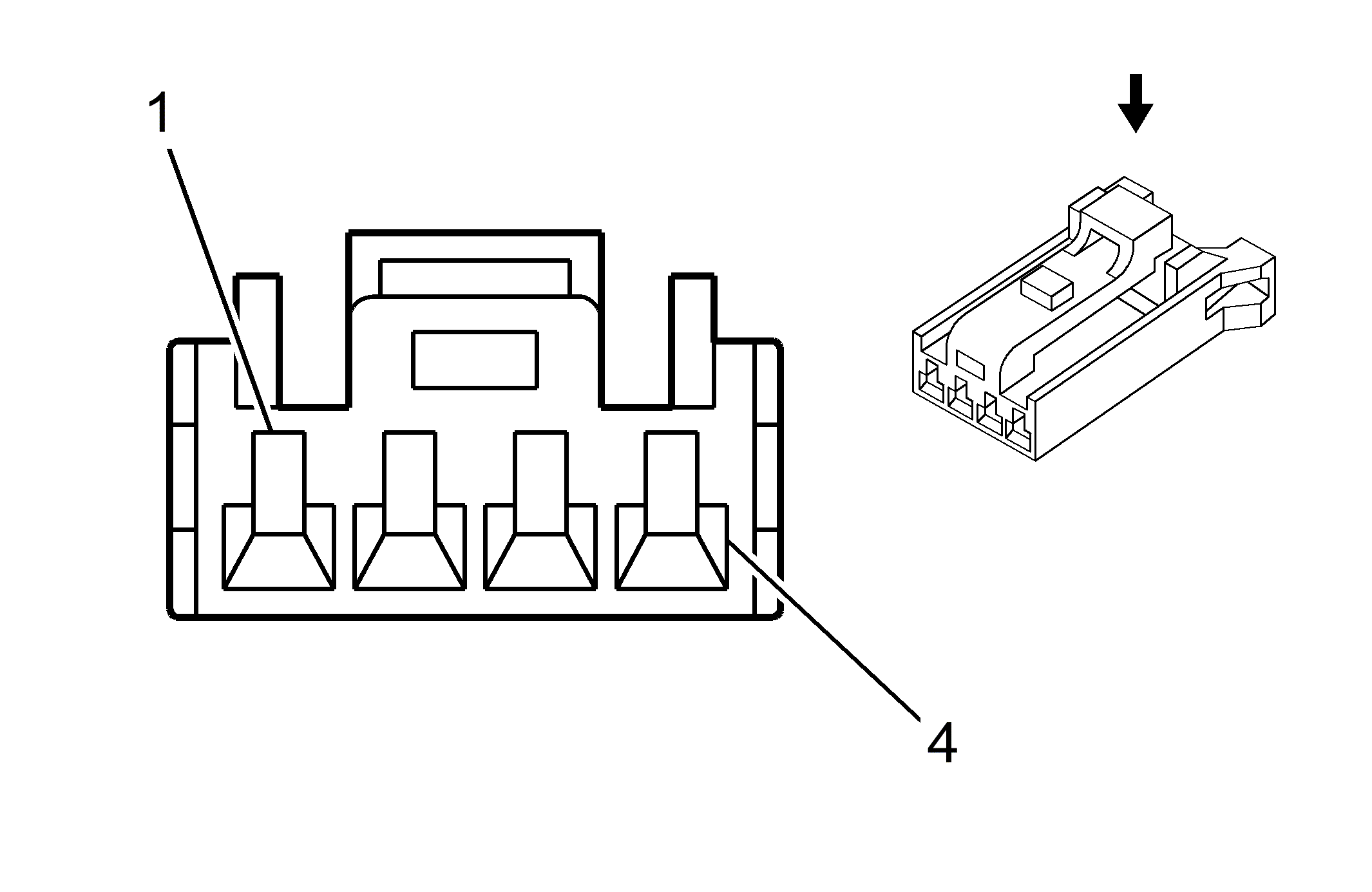

Shift Program Switch Connector End View

Shift Program Switch

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610366 4-Way F PCB 040 Series (WH)
Pin	Wire Color	Circuit No.	Function
1	D-GN/WH	1135	Transmission Hold Signal
2	BN/WH	309	Right Park Lamp Supply Voltage
3	BK	450	Ground
4	BK	450	Ground
