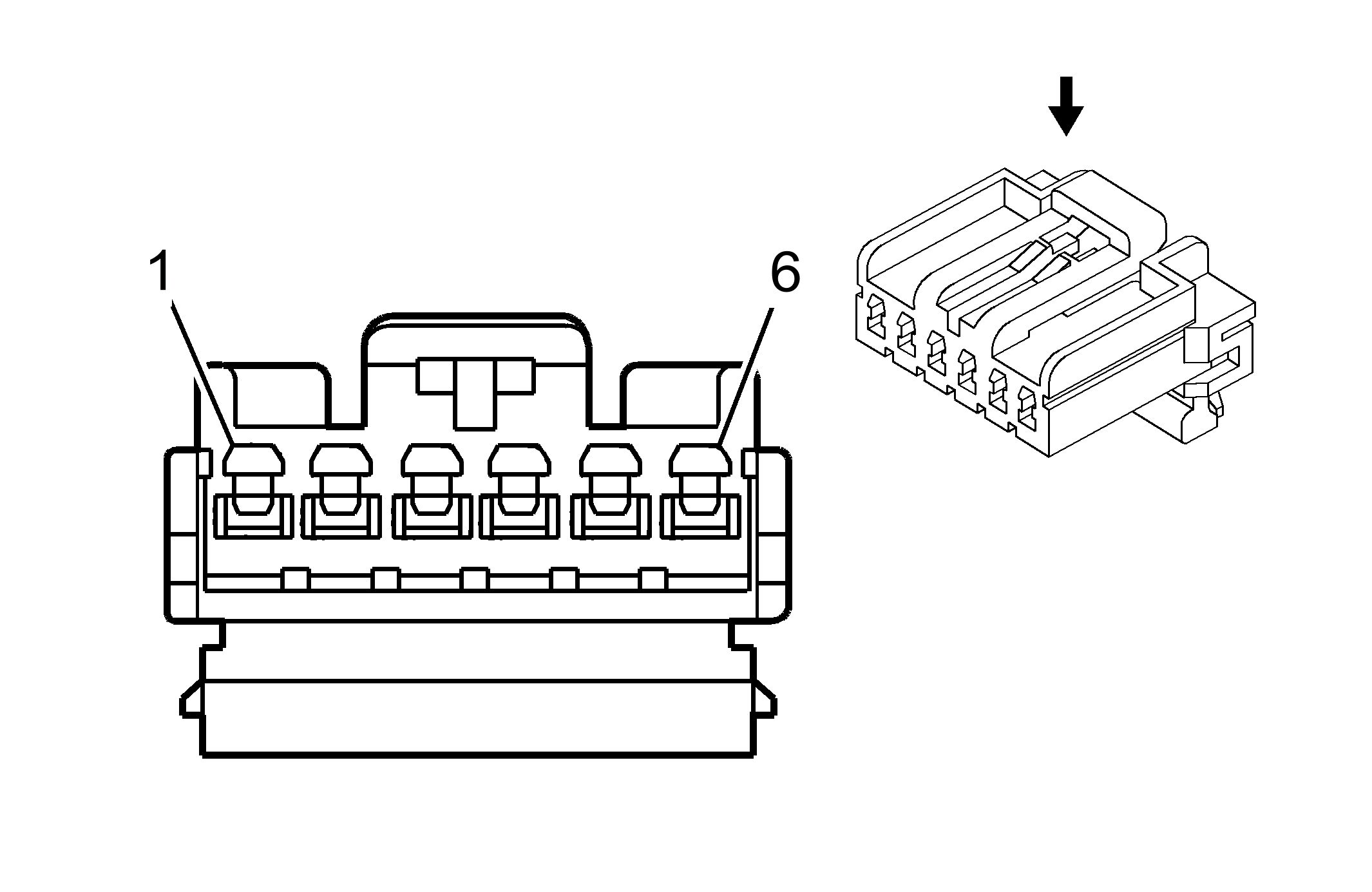

Sunroof Module Connector End View

Sunroof Module

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		AMP 174923 6-Way F 070 Multi-Lock Connector (WH)
Pin	Wire Color	Circuit No.	Function
1	RD	132	Sunroof Limit Switch Soft Stop Signal
2	-	-	Not Used
3	BN	741	Ignition 3 Voltage
4	BK	850	Ground
5	-	-	Not Used
6	YE	133	Sunroof Limit Switch Low Reference
