Installation Procedure

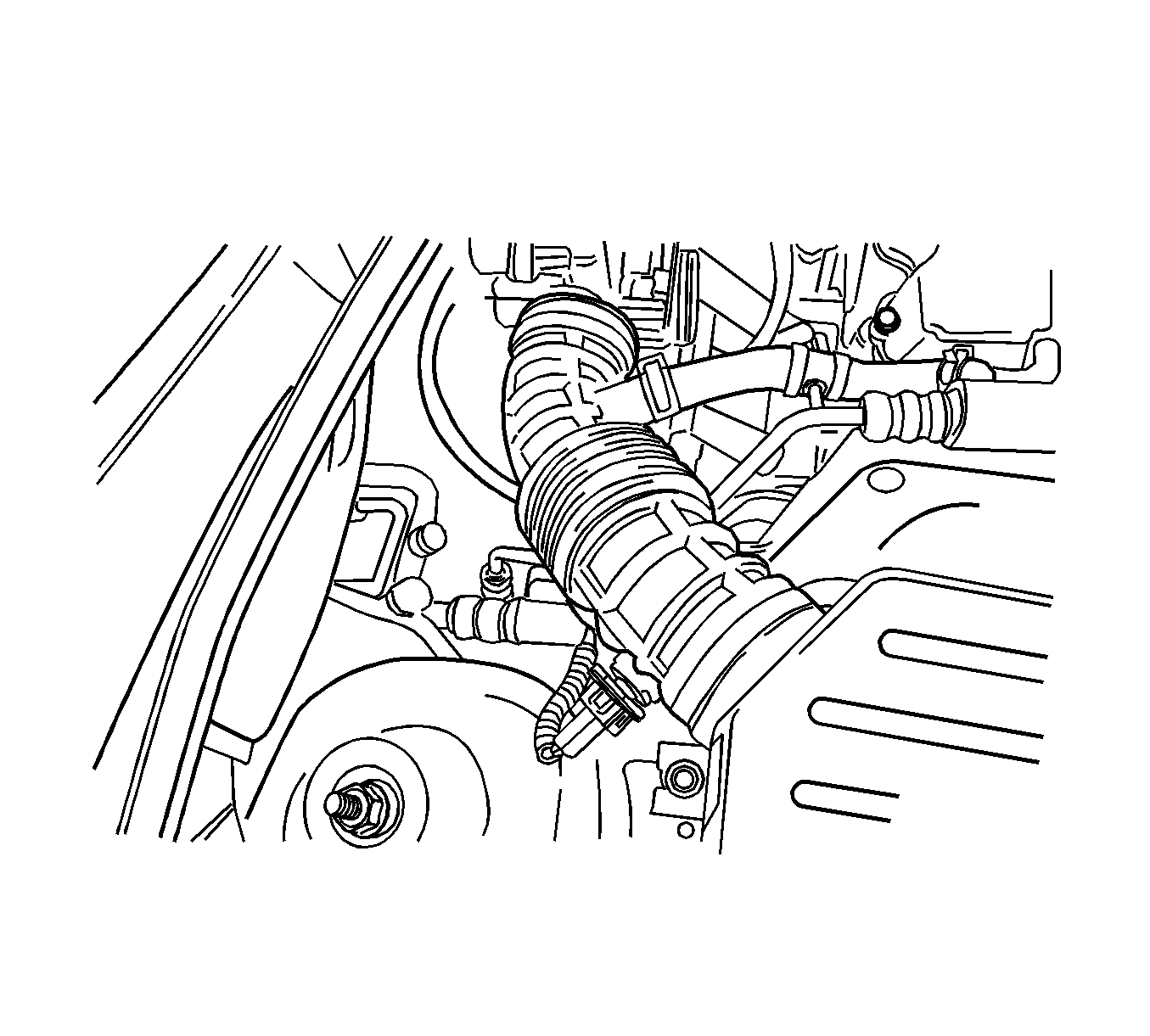

    Fig 1: Locating Intake Ducting To Engine
    GM1241530Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Insert the IAT sensor into the air intake tube.
  2. Connect the IAT sensor connector.
  3. Connect the negative battery cable.
