Installation Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

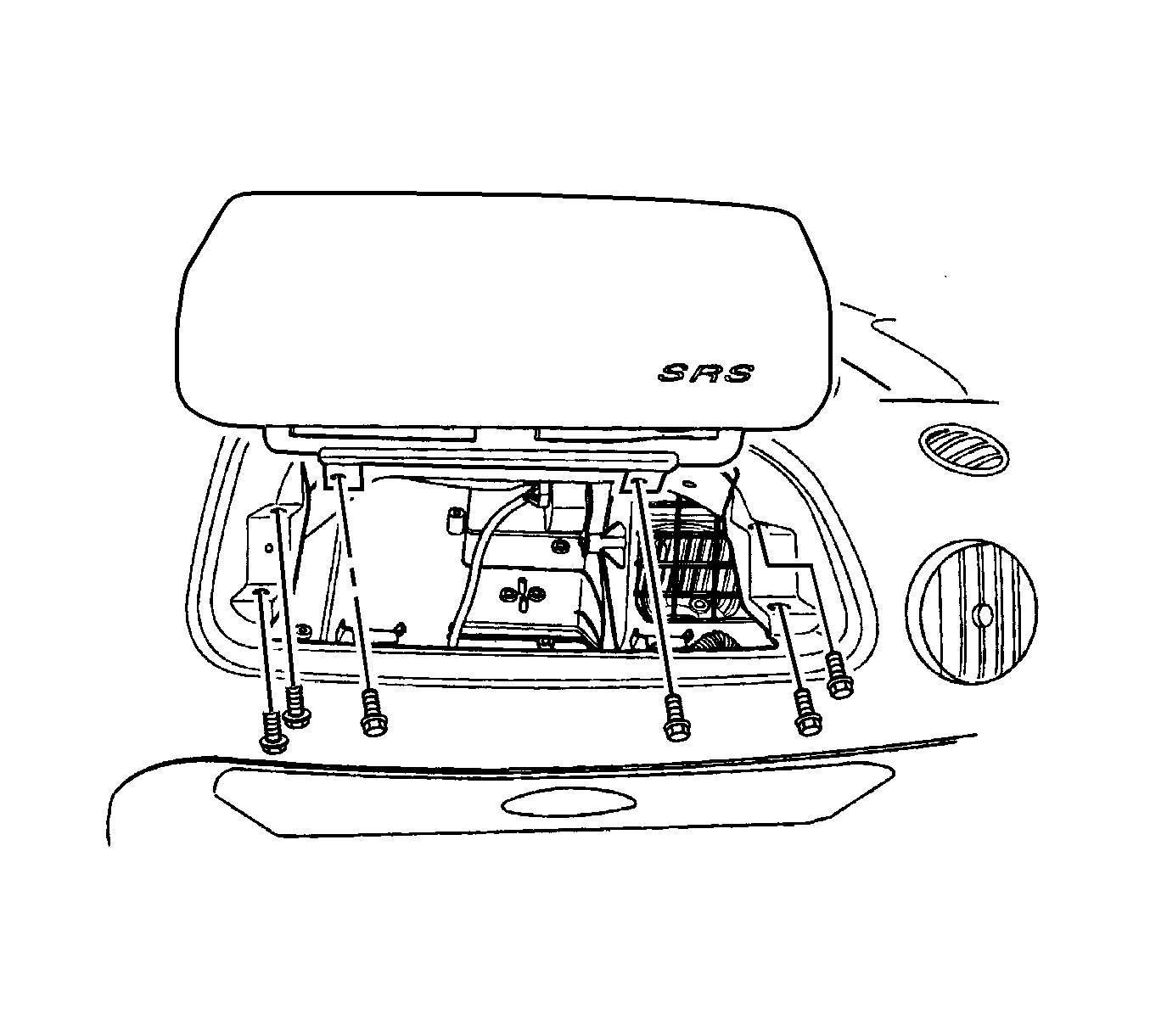

    Fig 1: Passenger Air Bag Module
    GM1252035Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the passenger air bag module by installing the mounting bolts to the air bag bracket.

    Tighten:  Tighten the passenger air bag module mounting bolt to 11 N.m (97 lb in).

  2. Connect the passenger air bag yellow electrical connector.
  3. Install the glove box. Refer to Storage Compartment Replacement - Instrument Panel (I/P) in Instrument Panel, Gages, and Console.
  4. Connect the negative battery cable.
