Installation Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

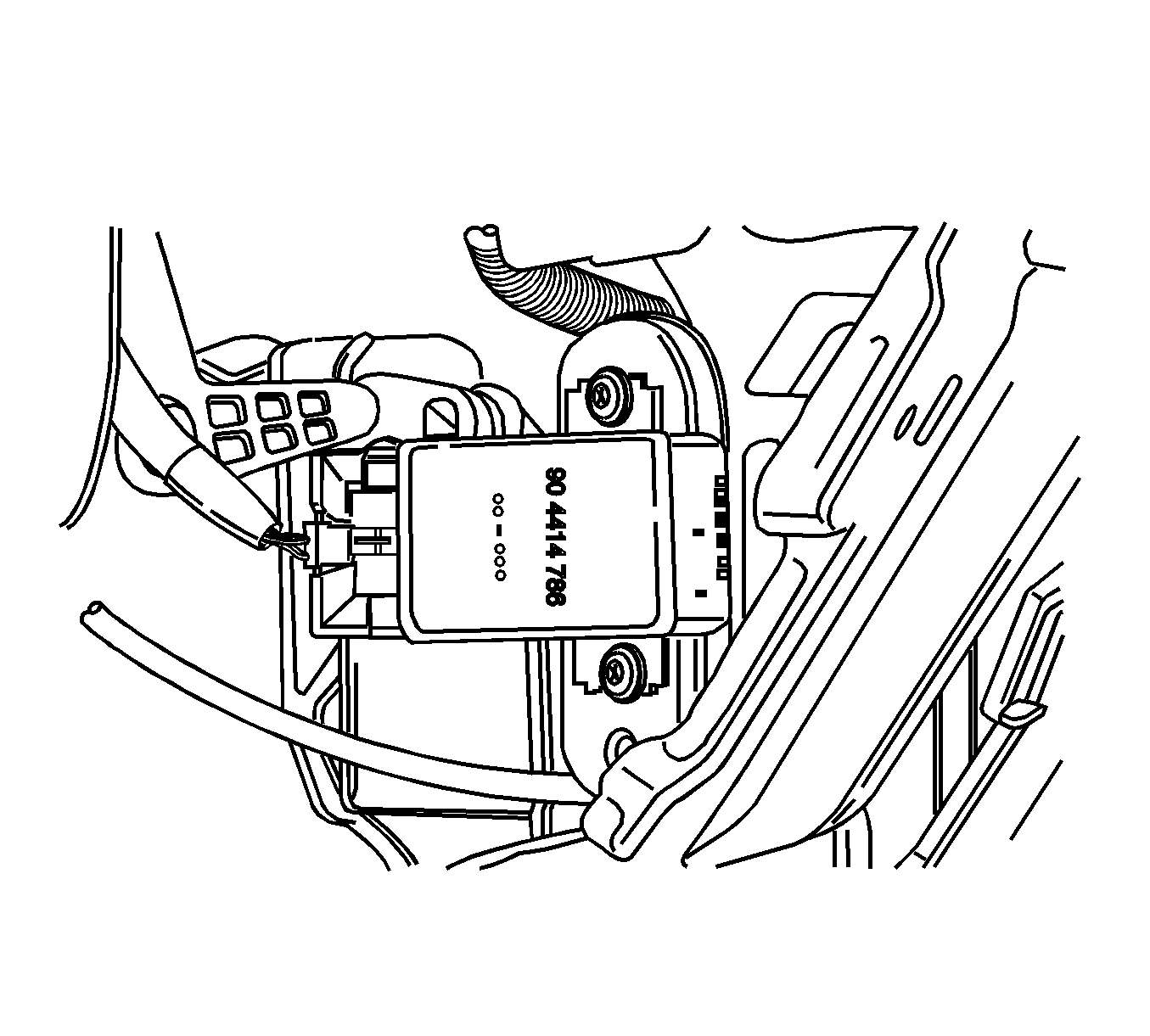

Fig 1: View of Daytime Running Lap Module and Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the daytime running lamp module with the bolts.
Tighten: Tighten the daytime running lamp module bolts to 2.5 N.m (22 lb in).
Connect the electrical connector.
Install the instrument panel lower cover.
Connect the negative battery cable.
