Installation Procedure

WARNING: This page is about a different car, the 2005 Suzuki Swift +, 2005 Pontiac Wave, and 2005 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

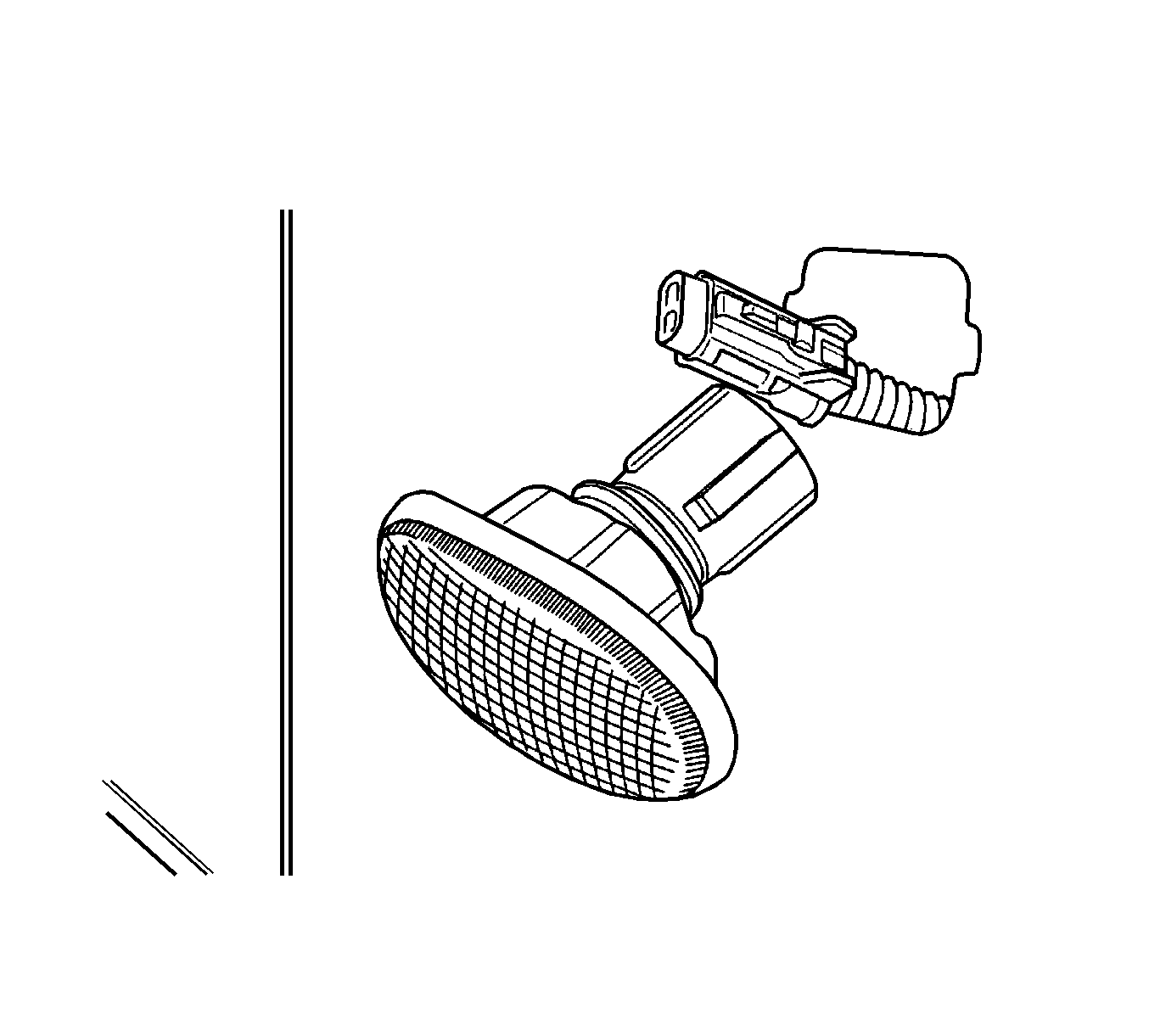

    Fig 1: View of Side Turn Signal Lamp
    GM1248417Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector.
  2. Install the side turn signal lamp.
  3. Connect the negative battery cable.
